Product innovationS

Tried and tested in-ground lifting technology with special supports for a wide variety of electric vehicles with patent-pending, spring-guided quick positioning.

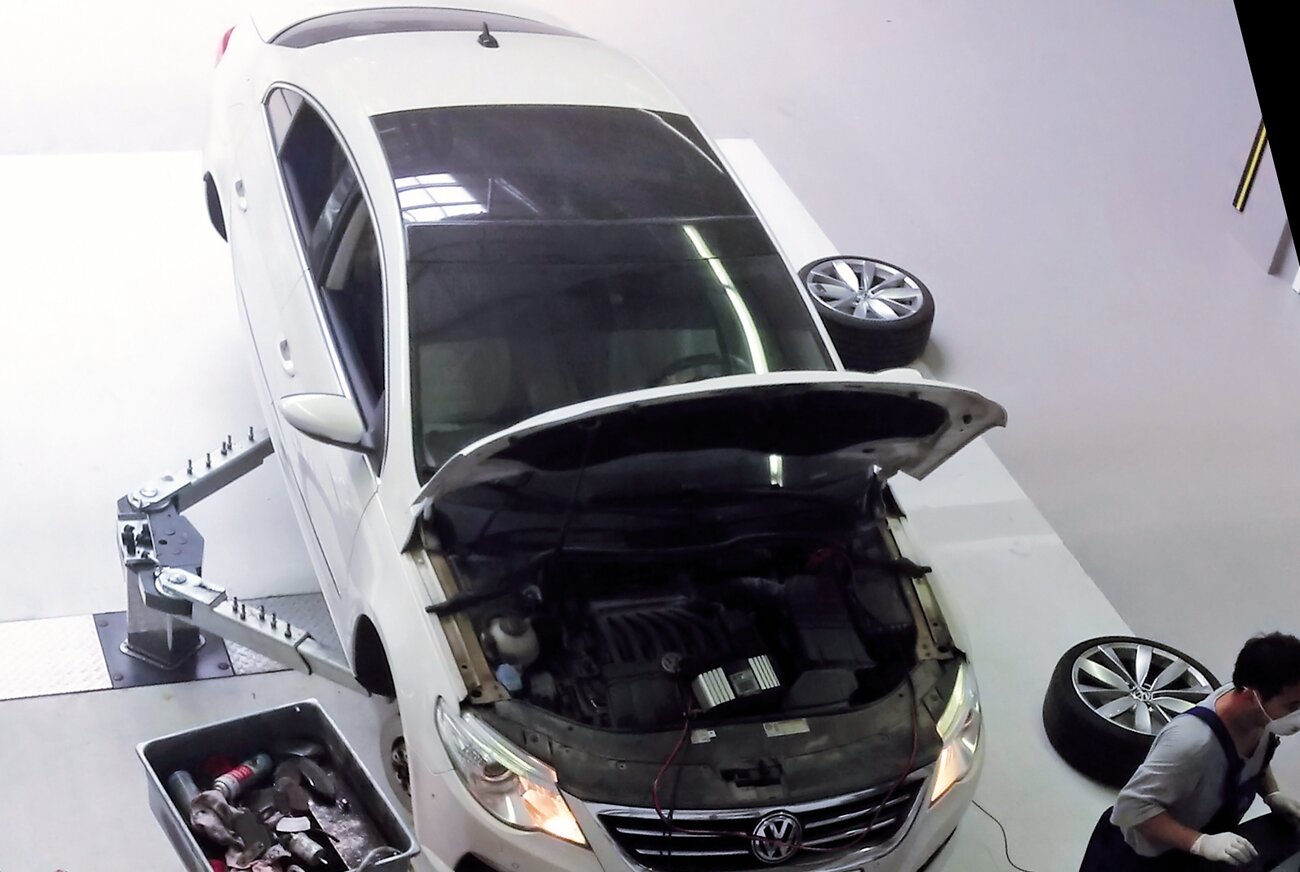

Lift with swing arm supports

• Flat extensions and robust end stops
• Patent-pending, controllable support arm lock operated by pressure from above
• Patent-pending roller bearing for support arms from 5.5 t load capacity
• ATS support plate system with individual and form-fit vehicle adapters – in particular for electric cars

Lift with flat head supports

• Steel support extensions ensure a low drive-over height
• Tyre-friendly on-ramp thanks to all-round bevelled extensions

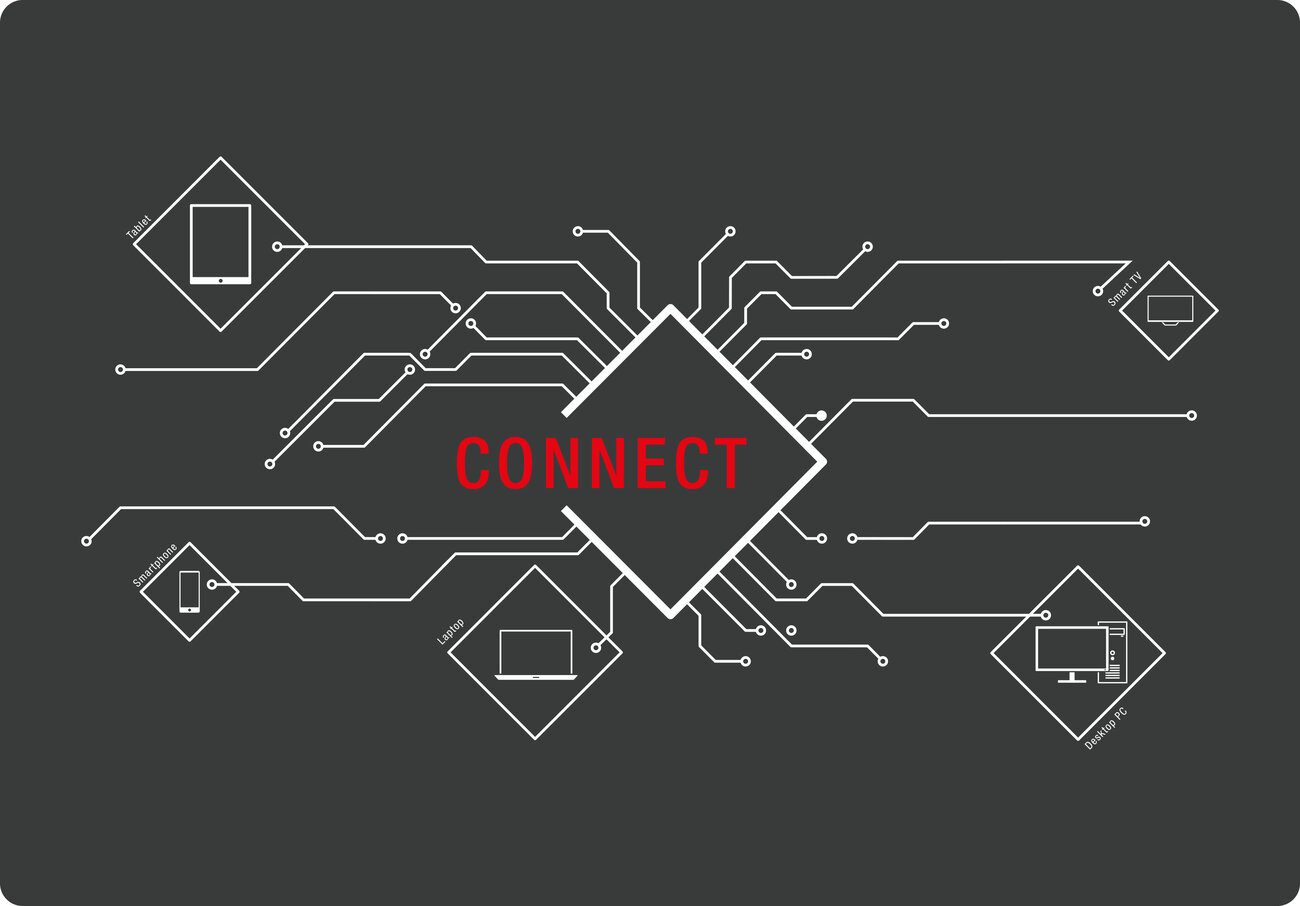

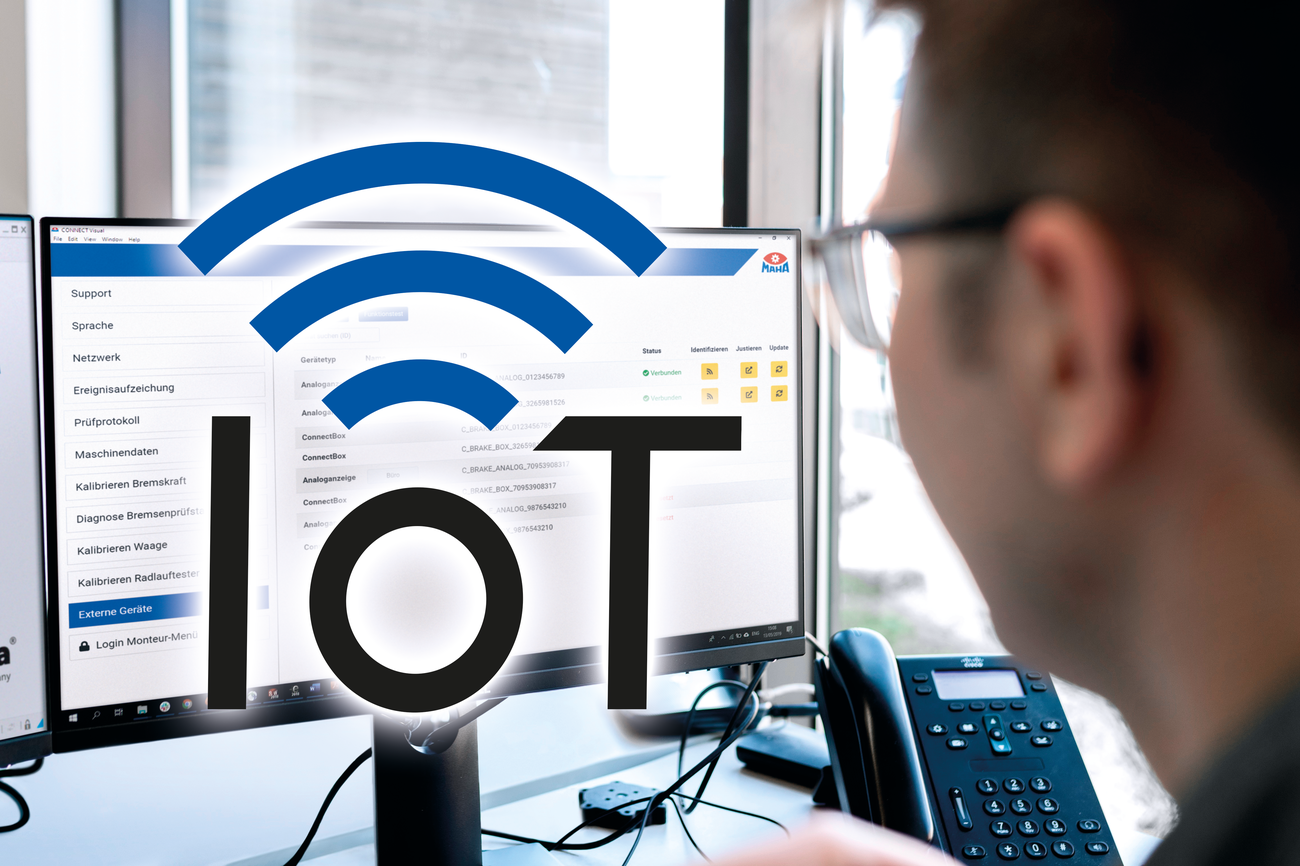

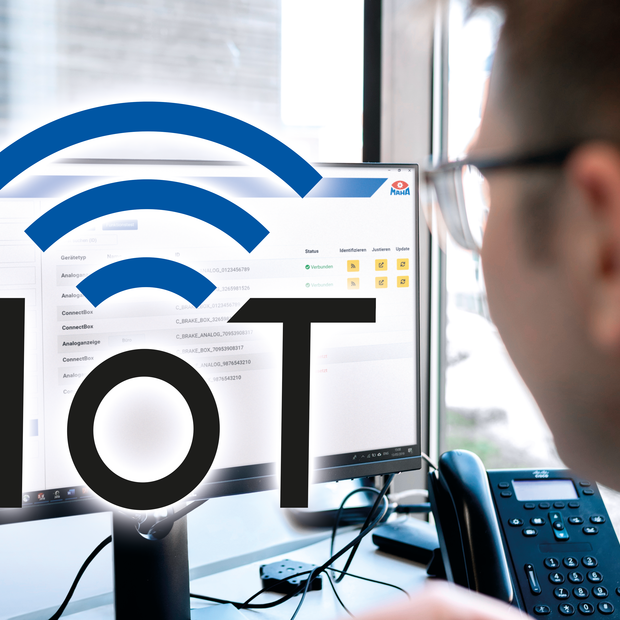

Brake tester TRUCK CONNECT – innovation of the decade – world’s first digital brake tester with state-of-the-art network technology – more details in our “Innovation Box”.

• A sturdy and solid design
• Modular interface module in floor assembly
• Secure and digital data transmission
• Modular control box setup
• Multi-flexible display possibilities ‘unlimited’
• Simple initial start-up
• Simple maintenance and service
• Safe operation
• Optimised calibration and adjustment
• Integrated and expandable software and interfaces

COMING SOON!

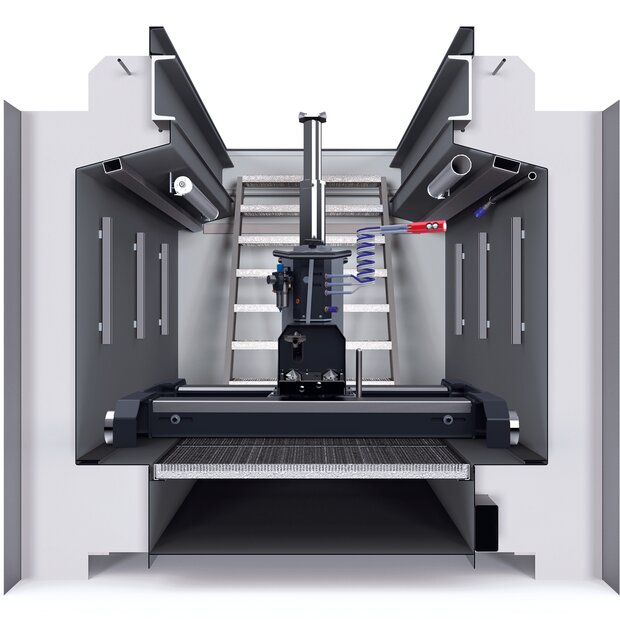

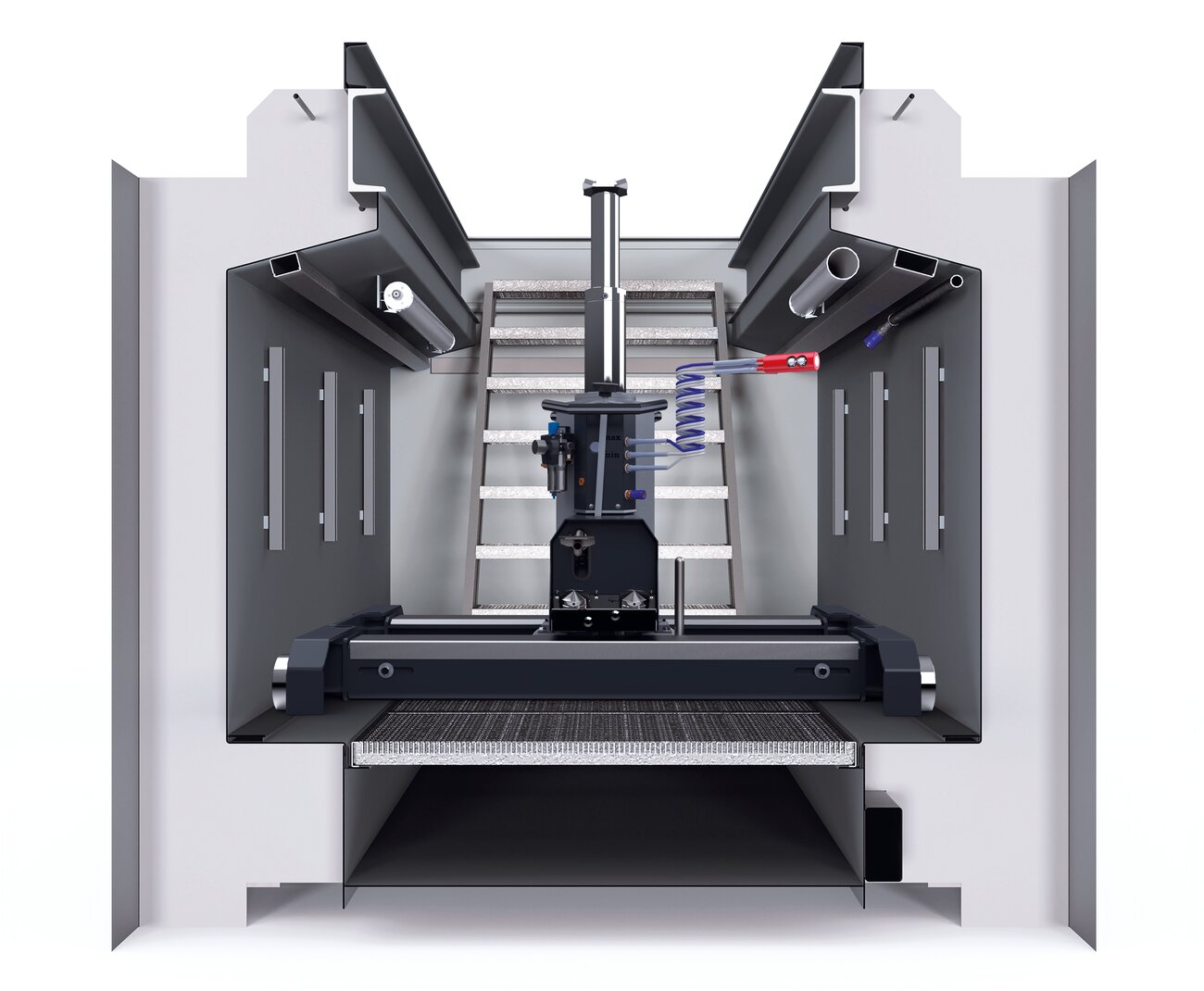

Truck testing and working pit – tailor-made according to the customer’s needs, can be easily and quickly installed on site and combined with all kinds of equipment.

• Customised, factory-assembled test, maintenance or work pit for HGVs and buses
• Connection of further workshop technology such as brake tester, axle play tester or pit jack
• Water-tight and oil-tight welded test, maintenance or work pit, meets all requirements vis-à-vis occupational and environmental safety
• Self-supporting construction
• Dimensionally stable installation of the TRUCKBAY thanks to double-walled filling chamber design
• Option to install in existing hall
• Rolling cover for covering the pit in the workshop

World’s first mobile column lift with lithium-ion battery technology and with unique, interference-free radio operation with double safety.

• Electromechanical drive, reliable and completely oil free
• Sophisticated technology for high mechanical safety
• Practical and convenient handling
• Secure data connections, wireless and interference-free
• Intuitive, LED-guided operation
• Unique energy supply via lithium-ion battery
• ‘Daisy chain’ charging cable can be used as backup for data connection

COMING SOON!

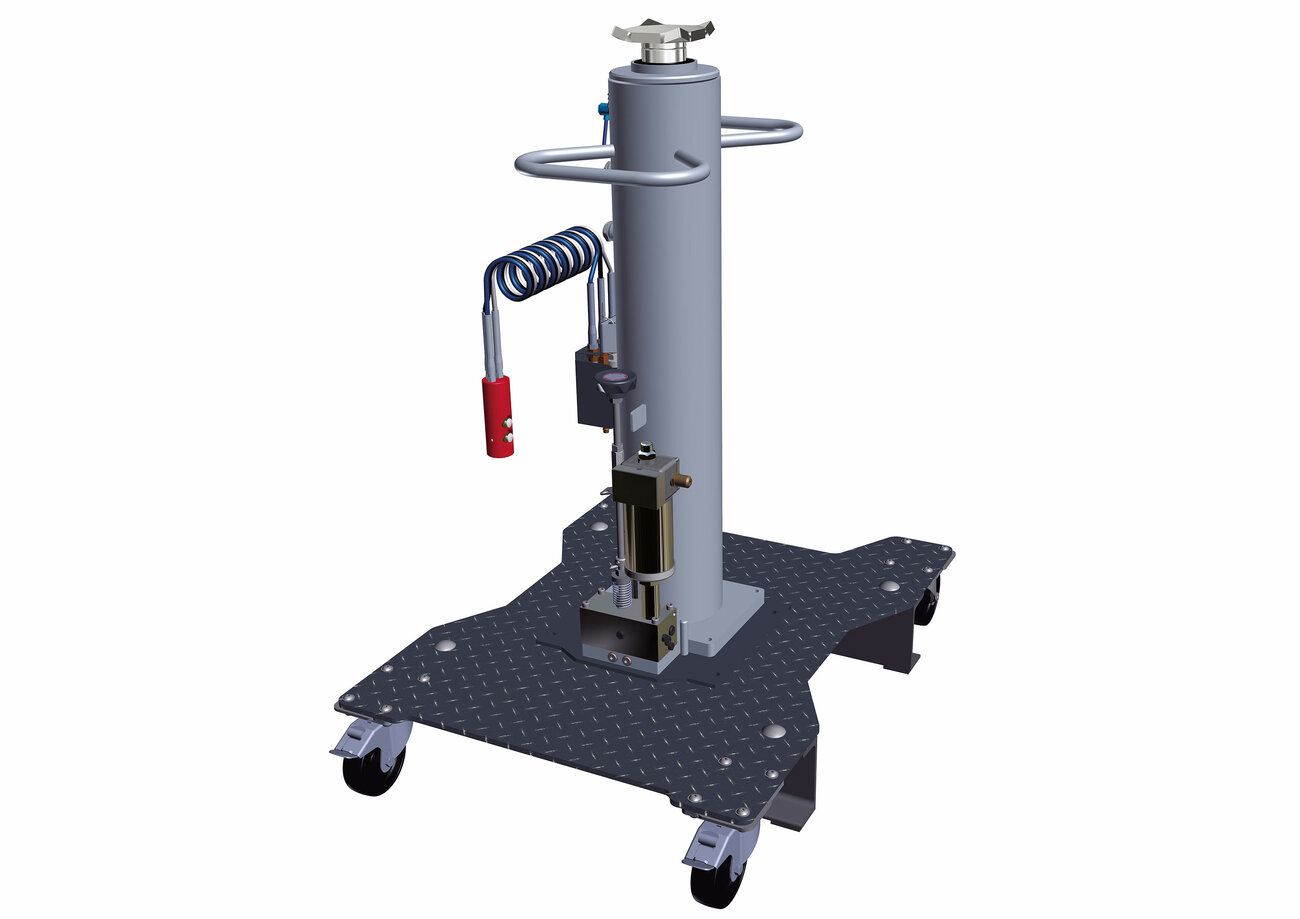

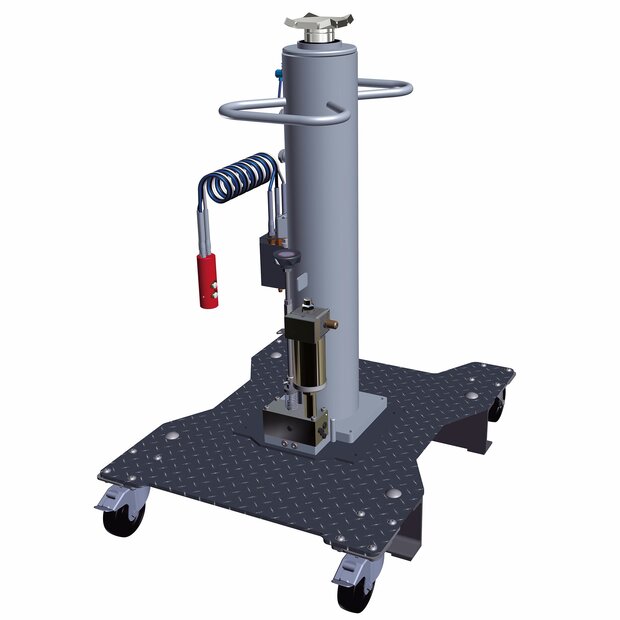

Latest generation pit jacks with synchronised cylinder and Venturi nozzle, which guarantee safe and accurate work.

• Automatic operation with rapid control to the load point and load stroke over all telescoping stages
• Telescopic synchronised cylinders travel steplessly at the same speed throughout
• Low height of 876 mm for gearbox removal or 683 mm for three telescopic stages
• Flexible manual control
• Flexible carriage (freely moving or rail-guided)
• SAT Self-supporting axle traverse
• GMT 800 Gearbox mounting tool

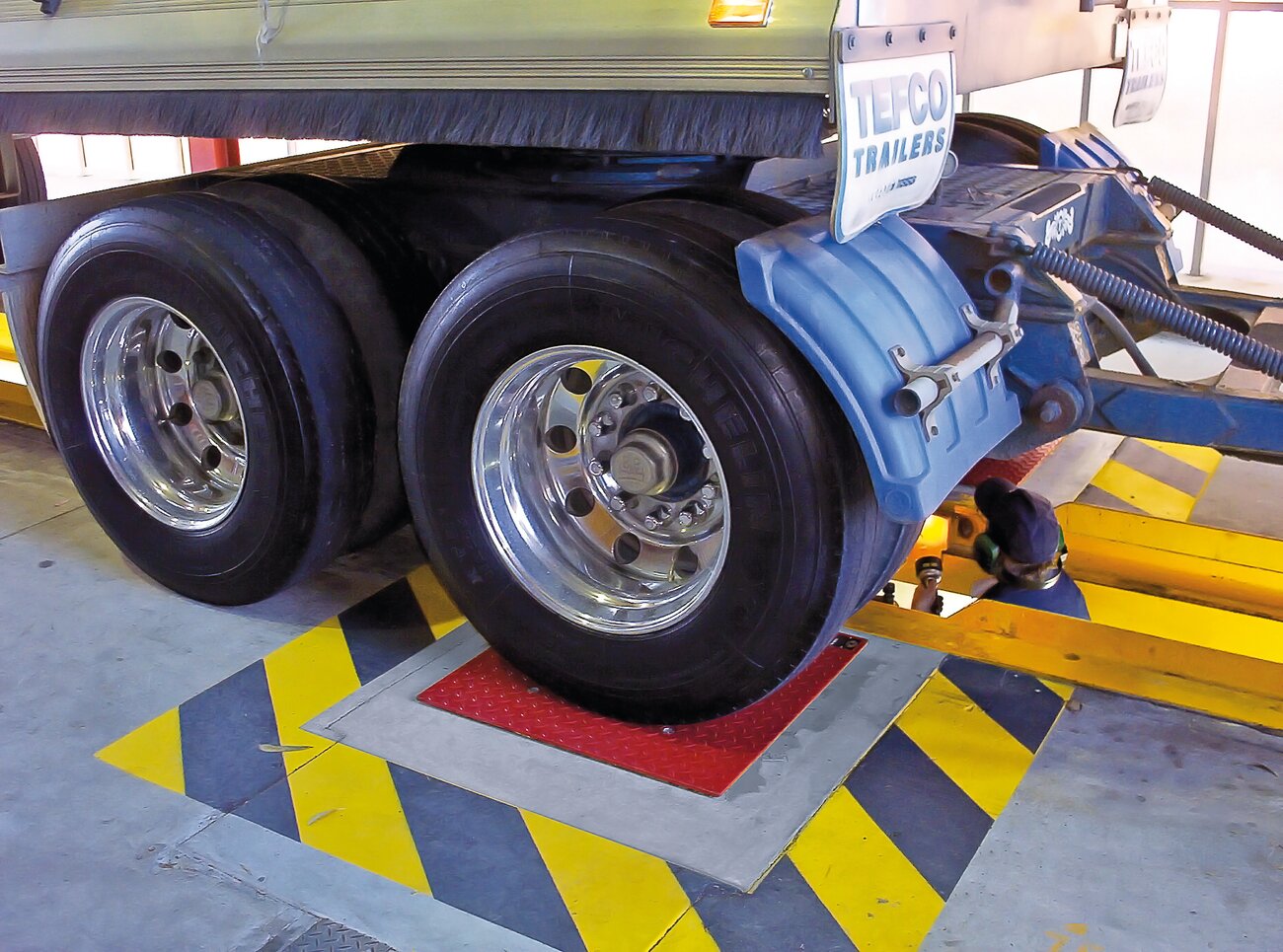

Truck axle play tester model with up to 20 t axle load, in which the current EU directive 2014/45/EU has already been implemented.

• Axle play tester LMS 20.0 for the reliable determination of defects and wear on steering parts, wheel bearings, shock absorbers and suspension by lateral and longitudinal movement of the test plates in opposite directions.
• Built-in hydraulic drive ensures a powerful and smooth movement of the test plates.
• Automatic mode as well as other different operating modes ensure the uncomplicated operability of the LMS 20.0.

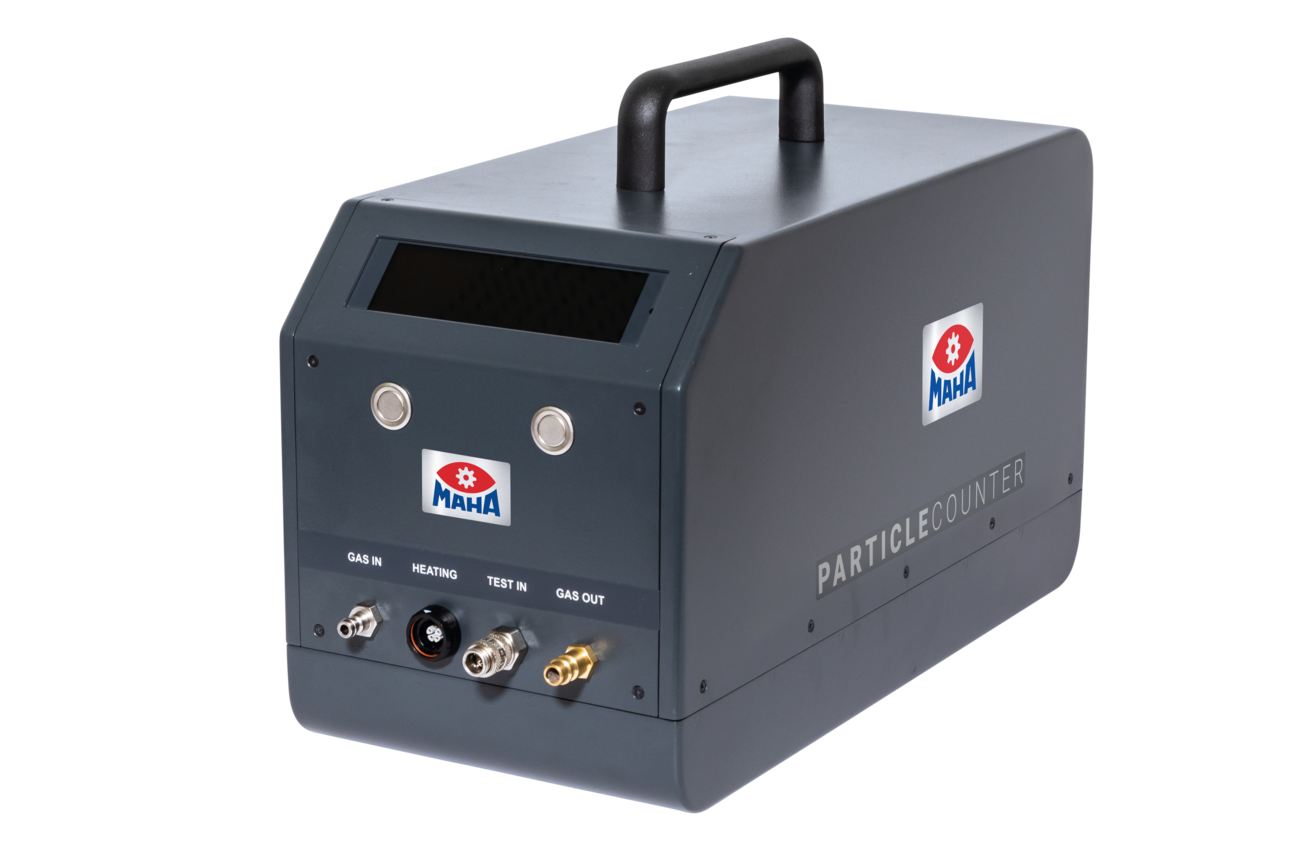

State-of-the-art particle measurement counter for both diesel and gasoline vehicles, based on the operating fluid-free diffusion charging measurement principle.

• Particle counter with built-in display unit
• Advanced Diffusion Charging measurement principle
• Particle count testing using partial flow method, as per Guideline 6
• Robust design for day-to-day use
• Low maintenance, no consumables

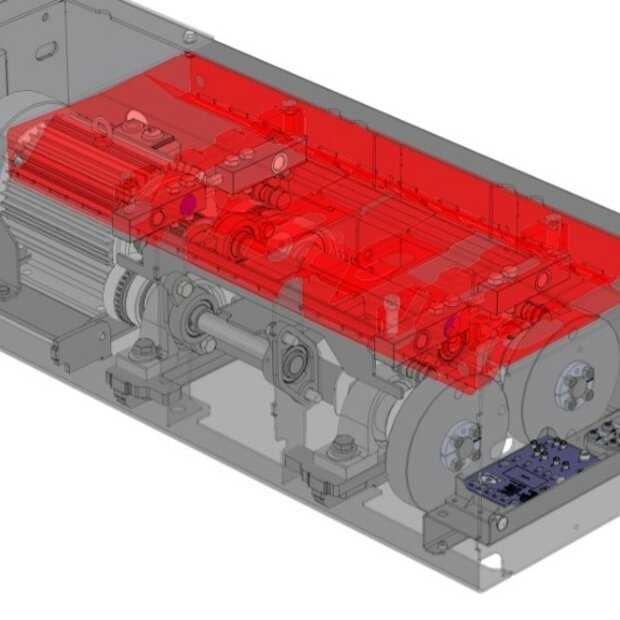

Performance meets precision – the completely new development is based on a PLC-programmed dynamometer and guarantees precise, reliable and reproducible measurement results.

• Electronically controlled 4WD synchronisation thanks to cutting-edge PLC with active force distribution
• Particularly suitable for testing electric vehicles

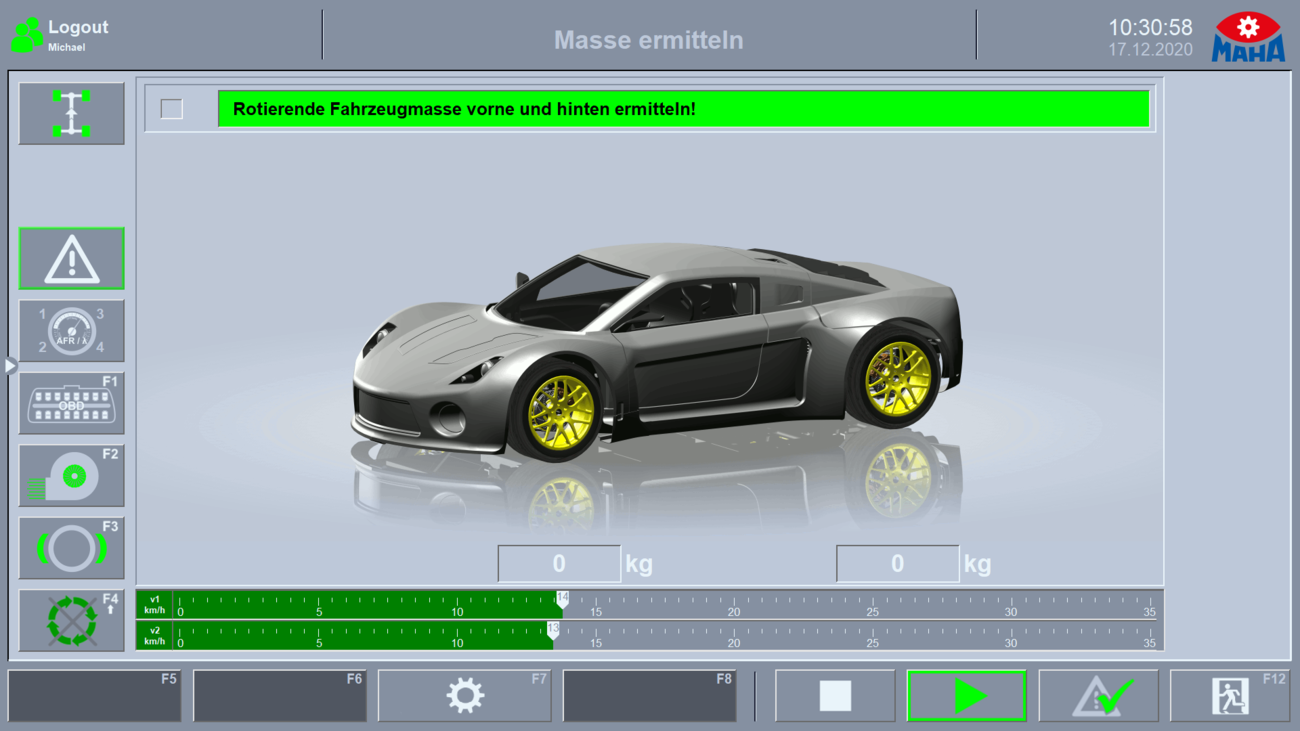

• Automatic determination of the rotating vehicle mass separately for each axle
• Fast, precise, and powerful eddy current brake control via high-performance current controller
• Test speeds of up to 300 kph
• Smooth-running, low-vibration roller set ensures high-precision measurement results

COMING SOON!

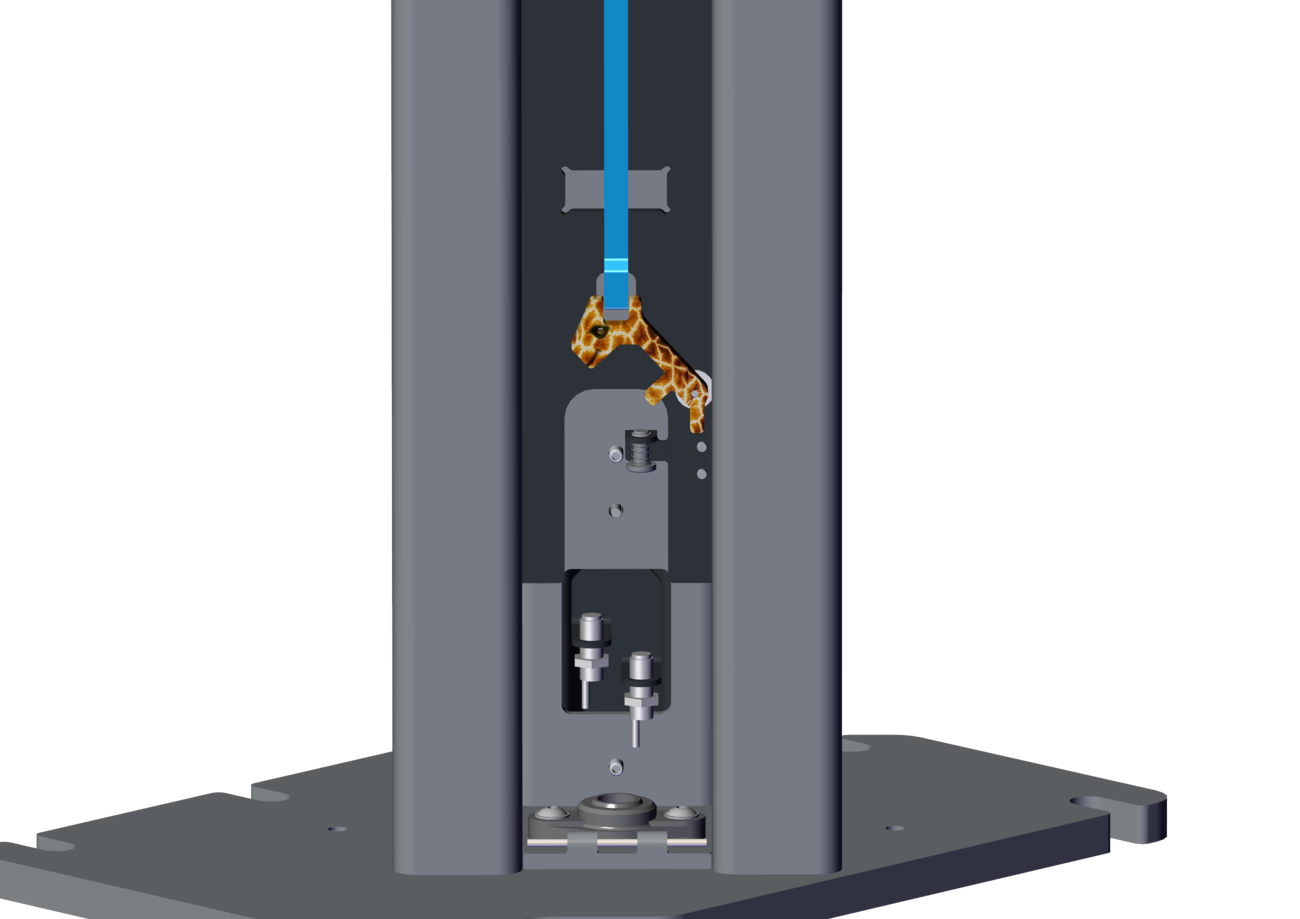

Unique in design and safety – the two-post lift family MA STAR triple safety with 3.5 t, 5.5 t and brand new with 6.5 t load capacity.

• A sturdy and solid design thanks to origami technology
• Safe to use
• Simple maintenance and service
• Simple start-up based on ‘plug and play’ motto
• Intuitive operation

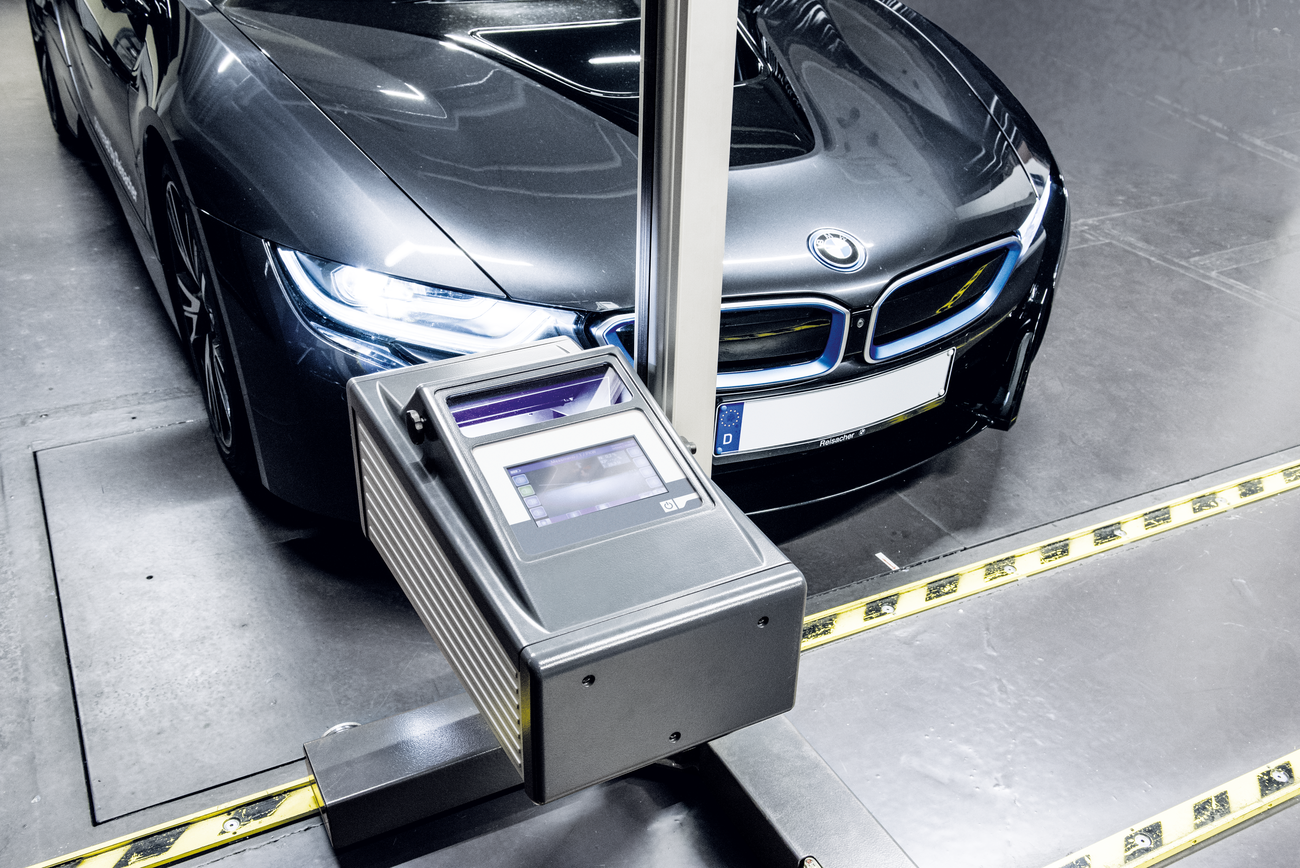

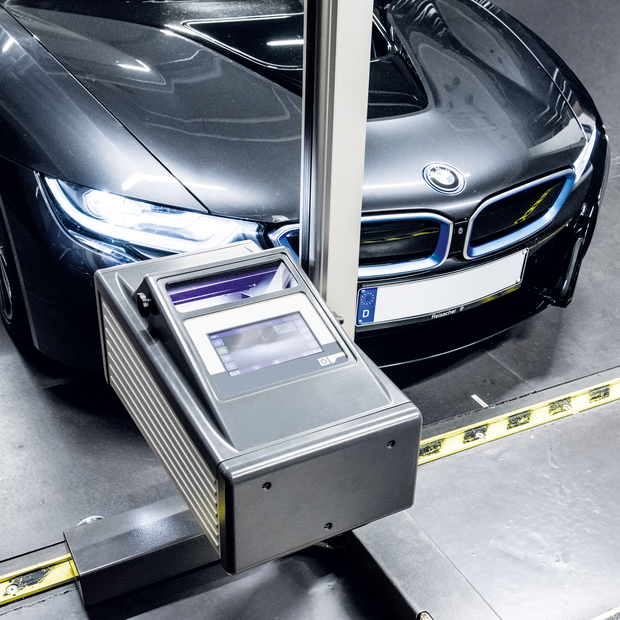

The redesign of the MLT 3000 is characterised in particular by the faster image processing of the new camera and control and can inspect the latest headlight technology.

• New, more performant control
• New touch display with capacitive touch
• New camera module with grey filter
• Modern lithium-ion battery technology
• New running wheels with needle bearings
• Redesigned alignment unit
• Torsion-resistant and wear-free aluminium column
• Light collecting box with large Fresnel lens
• Carriage with choice of three wheel variants for adaptation to a wide variety of rail systems or floor guided

• COMING SOON!

MLT 3000

• Electronic level compensation balances out any unevenness
• Very user-friendly thanks to intuitive user guidance
• Precise measurement technology for current and future lighting systems

This new development meets the recommended specification of the EGEA (European Garage Equipment Association) and operates according to the phase shift principle

• Meets EGEA (European Garage Equipment Association) specifications
• Phase shift measurement principle
• Compact dimensions enable flexible installation
• Split design as standard for either pit or foundation installation
• Test lane capable within the CONNECT SERIES
• Optional noise detection to localise disturbing noises on the vehicle
• Plug-in sensors enable very simple maintenance and service

COMING SOON!

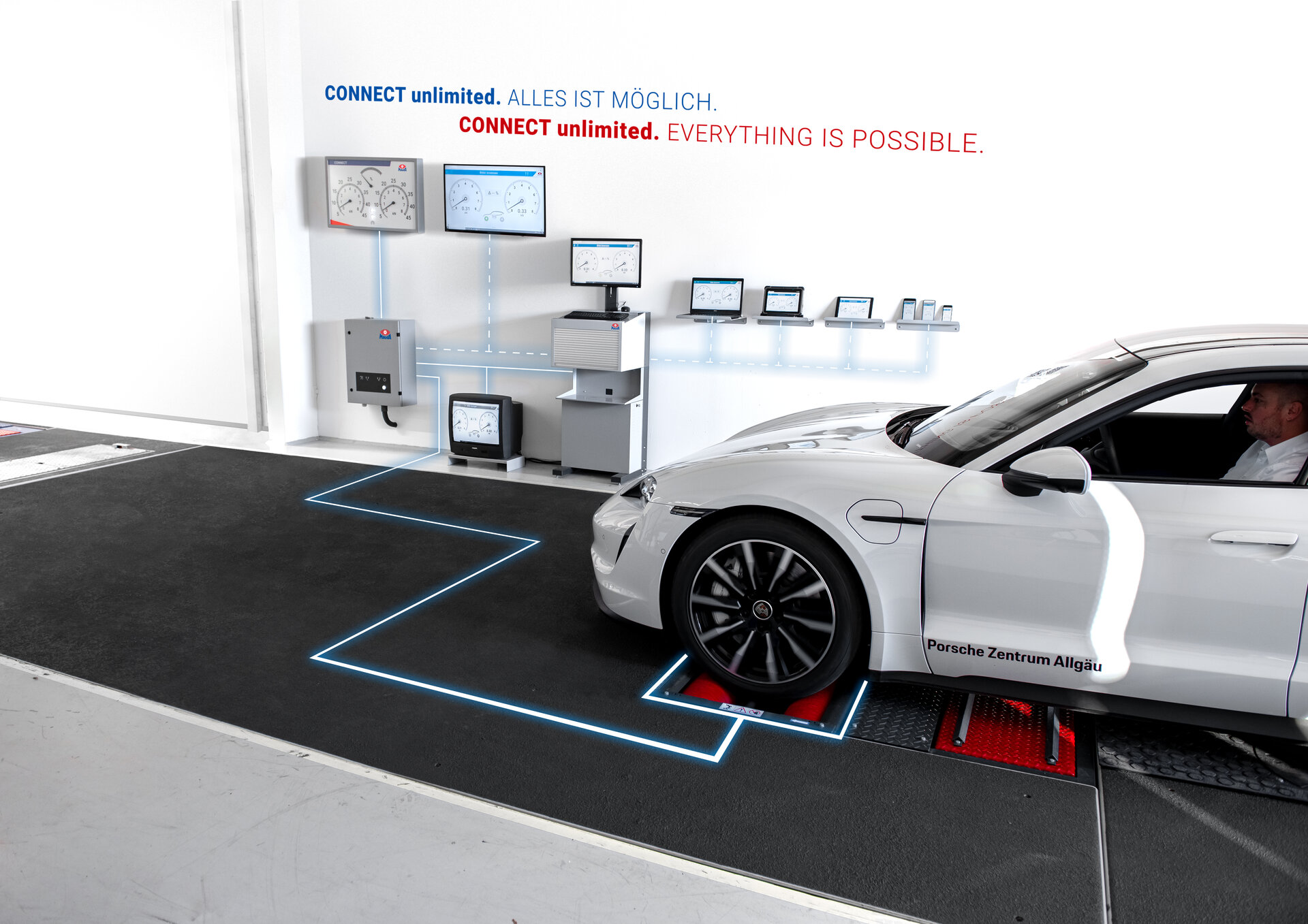

Brake tester CAR CONNECT – innovation of the decade – world’s first digital brake tester with state-of-the-art network technology – more details in our “Innovation Box”.

• A sturdy and solid design
• Modular interface module in floor assembly
• Secure and digital data transmission
• Modular control box setup
• Multi-flexible display possibilities ‘unlimited’
• Simple initial start-up
• Simple maintenance and service
• Safe operation
• Optimised calibration and adjustment
• Integrated and expandable software and interfaces

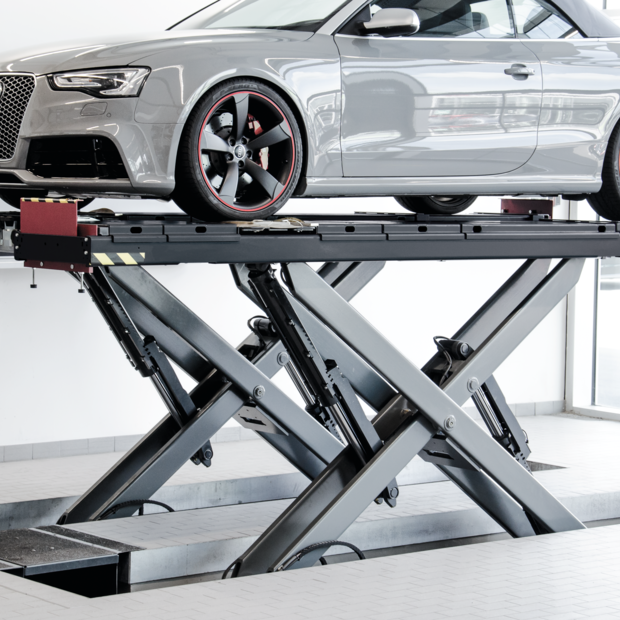

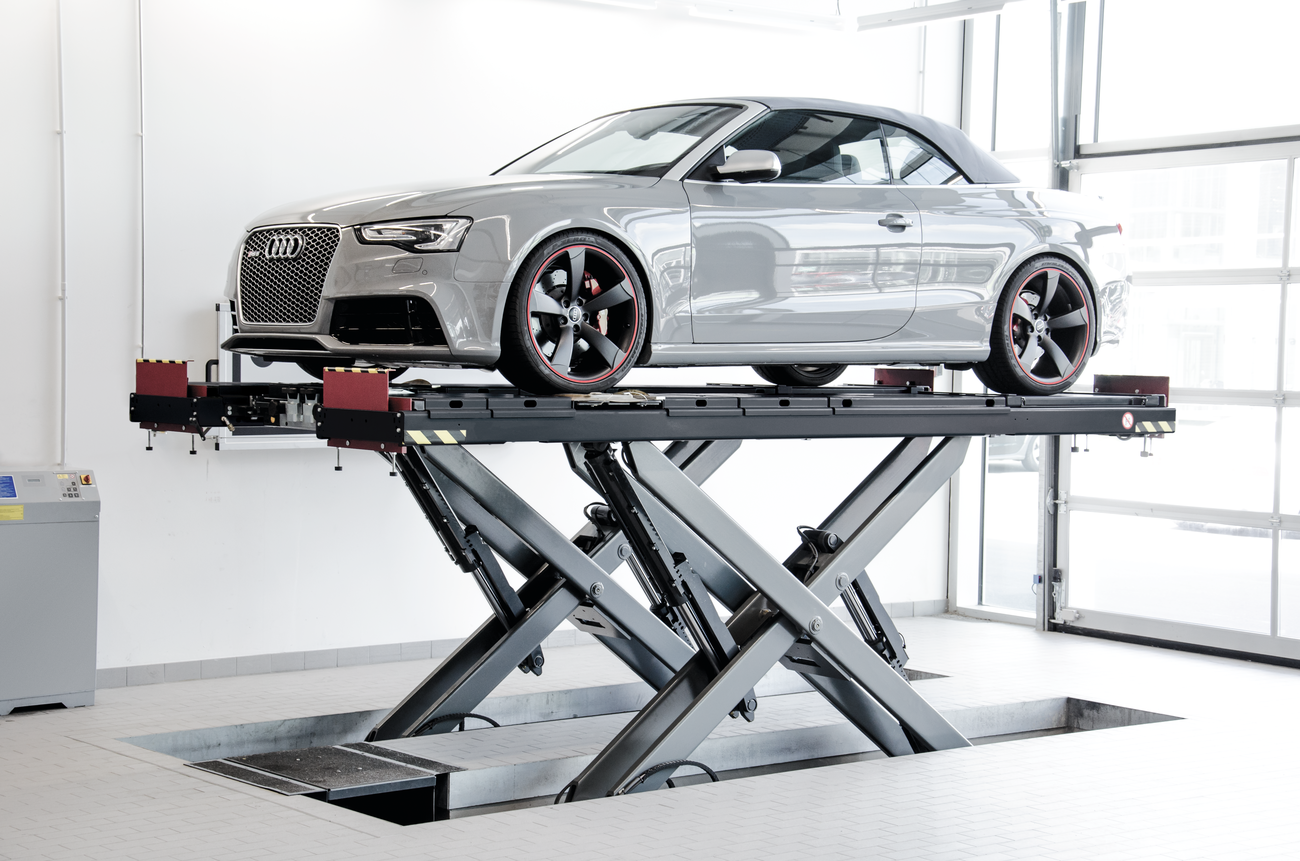

DUO CM scissors lifts with two different runways, on the one hand according to the German directive for headlight testing stations, and on the other hand according to the new EU directive for axle play testers.

• Scissors lift for flush-floor installation
• Lifts vehicles and is optimally suited for wheel alignment checks due to its high level of stability.
• Its robust and well-established construction is designed for maximum service life and for high vehicle throughputs when used for vehicle testing.
• Protected within the lifting cylinders, the integrated maintenance-free displacement measurement sensor (absolute linear measurement system) eliminates the need for light barriers for synchronisation monitoring and electric switches for lift height detection.

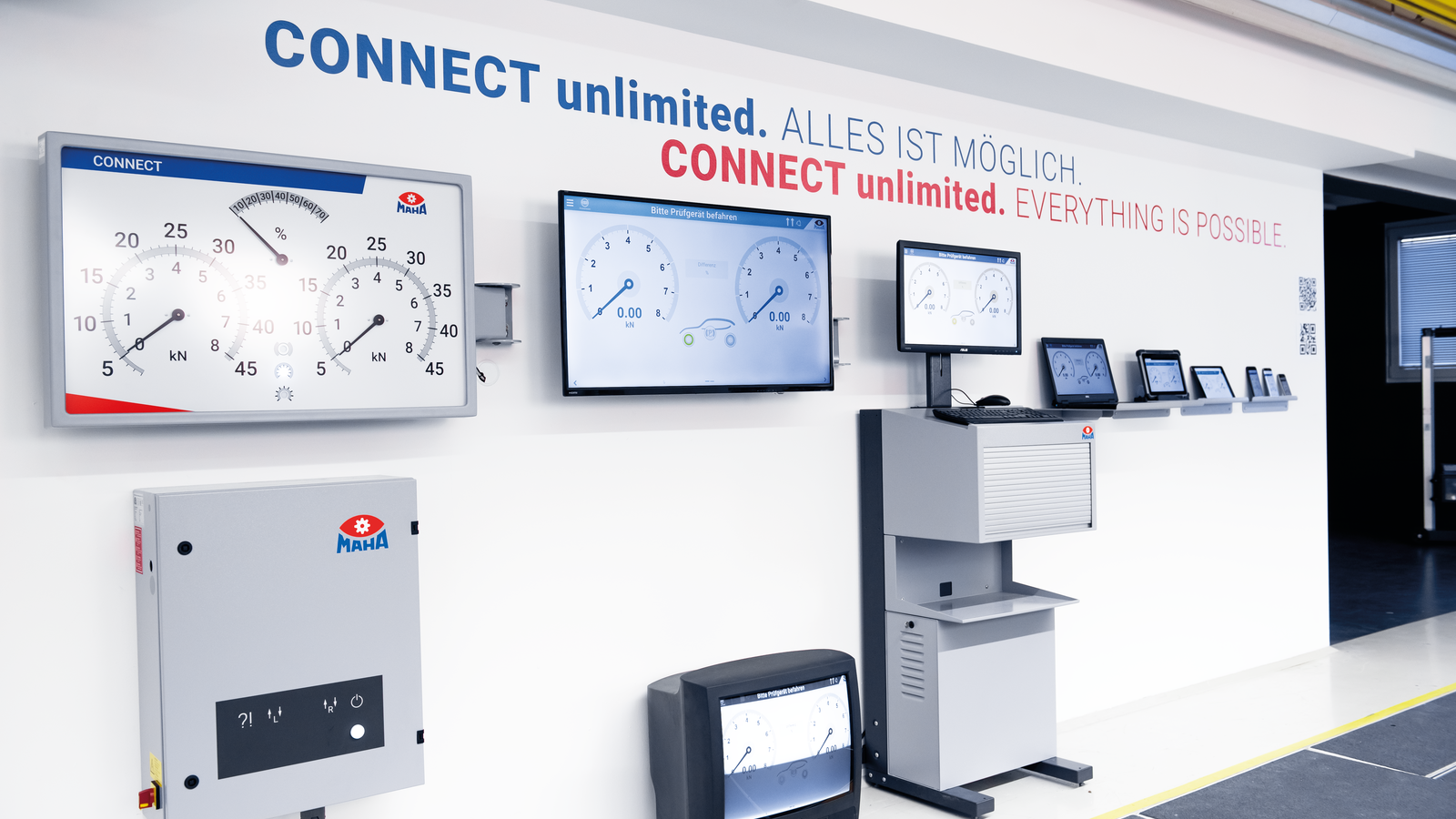

Come and see for yourself: the innovative technology of the CAR and TRUCK CONNECT series in combination with cutting-edge software technology in our “Innovation Box” – access only in the company of a MAHA employee.
