SC250 VP 185087

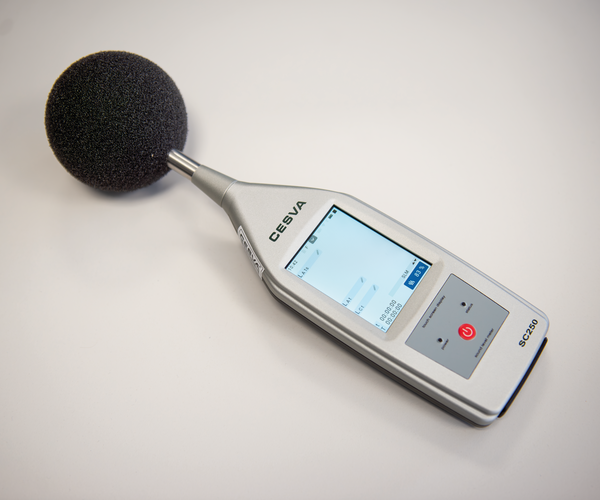

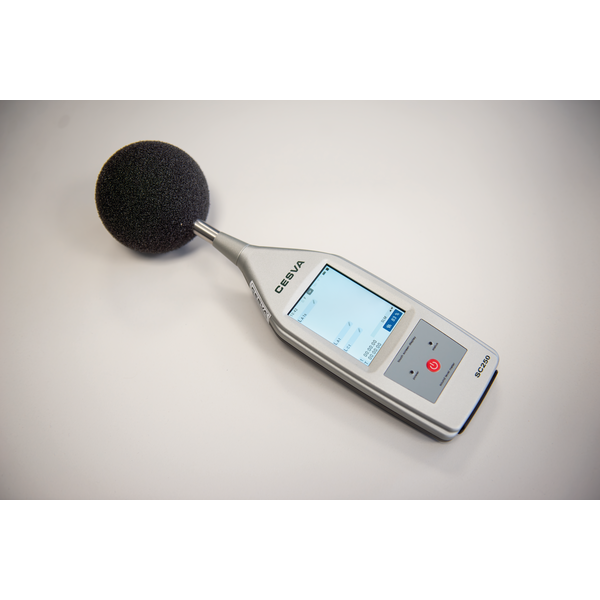

The CESVA SC250 is a Class 1 precision sound level meter compliant with IEC 61672, designed for demanding measurement tasks where accuracy and standards compliance are essential. Its high measurement accuracy across a wide frequency range and a measuring range starting at 16.5 dB allow even very quiet environments to be assessed reliably. With an operating temperature range from −10 °C to +50 °C, it is suitable for year-round field use. A, C and Z frequency weightings, a clear digital display with 0.1 dB resolution, and connectivity via USB-C, Bluetooth and Wi-Fi ensure flexible use, straightforward operation and convenient data transfer.

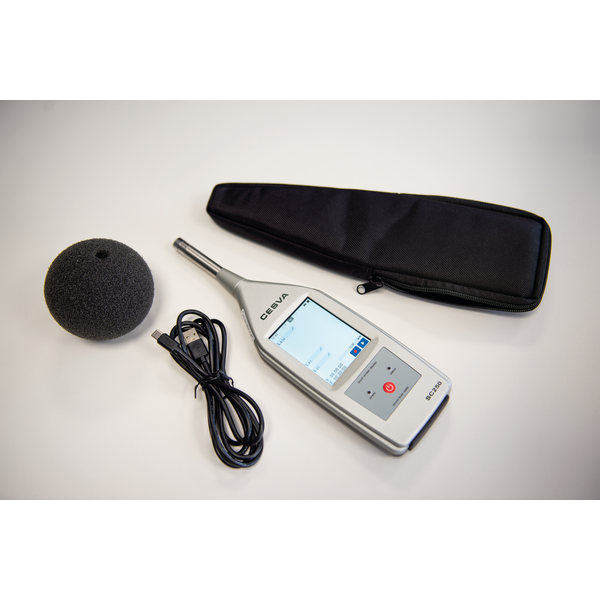

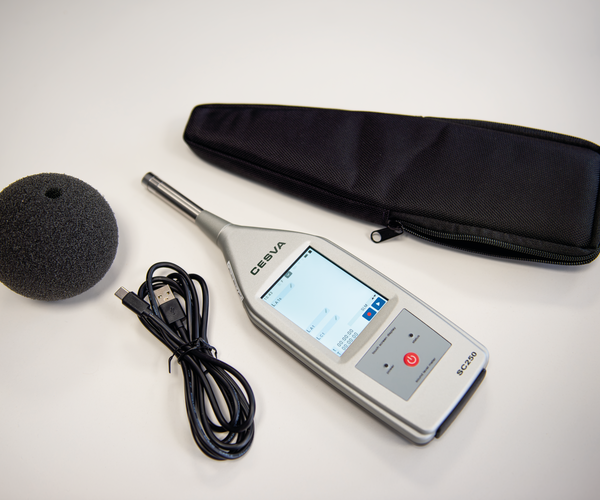

product details / scope of delivery

Description:

  • Class 1 meter
  • Standards: ANSI S1.43-1997(R2007), ANSI S1.4-2014, IEC 61672-1(2013), IEC 61010-1(2010)
  • Digital display with resolution 0.1 dB
  • Connections: AC Output, USB-C, Bluetooth, WIFI
  • Frequency weighting: A , C , Z


Downloads

Sales documents

Technical Datasheet
Technical Datasheet SC250
DE EN
Technical Datasheet (Printable version) SC250
DE EN

Technical Data

Technical data:

Measurement range16.5 - 140.1 dB
Operating temperature-10 °C - +50 °C
Storage (without battery)-20 °C - +60 °C
Battery operationlithium 2200 mAh rechargeable
(battery charging via USB port)
Dimensions (WxHxD) approx. 296x85x26.5 mm (with microphone)
Weight................ approx. 358 g
