SC202 VP 185086

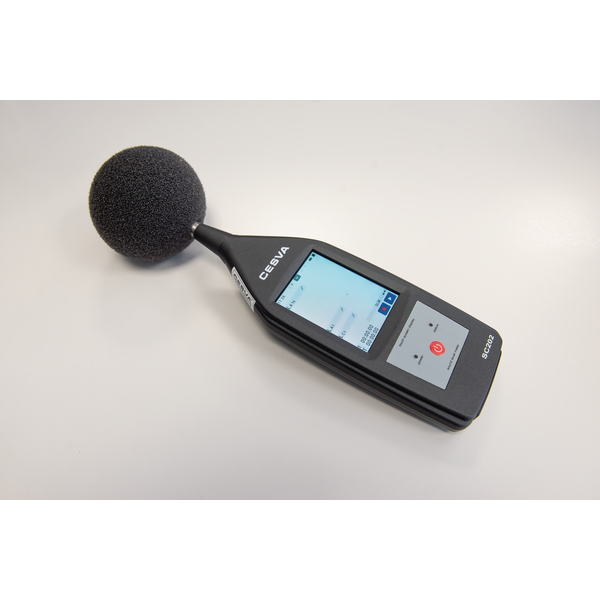

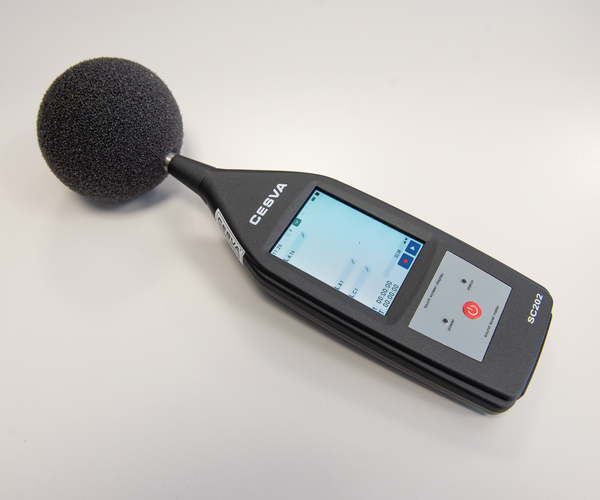

The CESVA SC202 is a Class 2 sound level meter compliant with IEC 61672, designed for indicative and workplace-related measurements in a wide range of industrial and operational environments. It reliably covers most typical measurement tasks and supports A, C and Z frequency weightings. A clear digital display with 0.1 dB resolution and connectivity via USB-C, Bluetooth and Wi-Fi ensure straightforward operation and convenient data transfer.

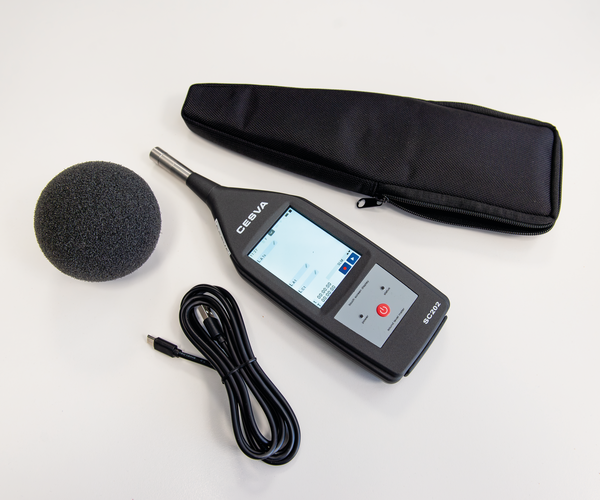

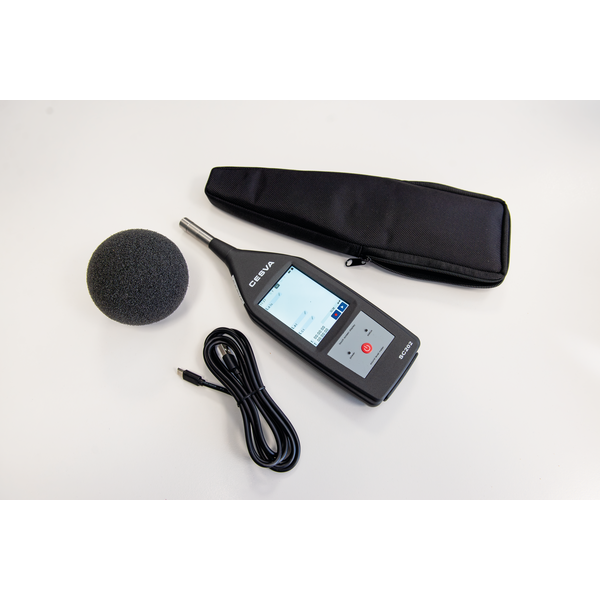

product details / scope of delivery

Description:

  • Class 2 meter
  • Standards: ANSI S1.43-1997(R2007), ANSI S1.4-2014_2 (R2006), IEC 61672-1(2013), IEC 61010-1(2010)
  • Digital display with resolution 0.1 dB
  • Connections: AC Output, USB-C, Bluetooth, WIFI
  • Frequency weighting: A , C , Z


Downloads

Sales documents

Technical Datasheet
Technical Datasheet SC202
DE EN
Technical Datasheet (Printable version) SC202
DE EN

Technical Data

Technical data:

Measurement range25.5 - 140 dB
Operating temperature0 °C - +40 °C
Storage (without battery)-20 °C - +60 °C
Battery operationlithium 2200 mAh rechargeable
(battery charging via USB port)
Dimensions (WxHxD) approx. 296x85x26.5 mm (with microphone)
Weight................ approx. 358 g
