product details / scope of delivery

  • Transient emission testing for accurate analysis and measurement of emissions for vehicles under load (in conjunction with MAHA emission testers)
  • Driving resistance simulation for ASM-5015 and ASM-2525 emission tests (Acceleration Simulation Mode) in line with the BAR '97 specifications

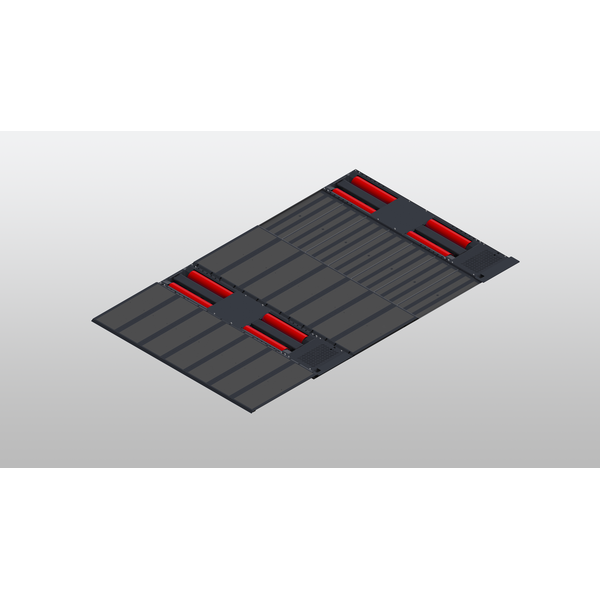

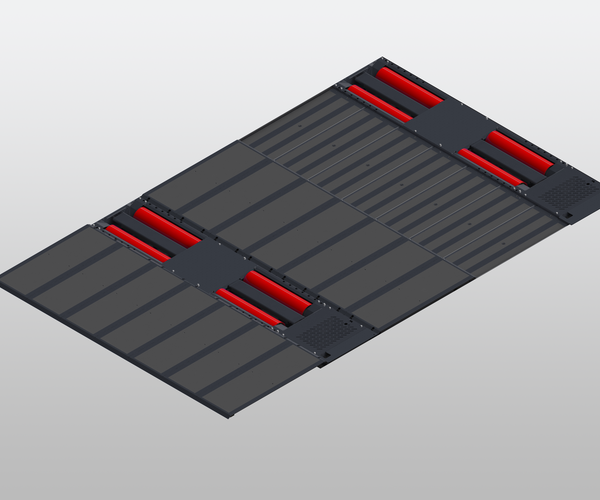

Roller Set Description and Standard Delivery

  • Communication Desk MCD 2000
  • Separate panel for control of roller set adjustment
  • Self-supporting closed roller set frame
  • 2 pcs Roller set Model ASM-BF/1
  • In-ground configuration, flush-floor installation of complete 4WD roller set, foundation necessary
  • Pneumatic lifting bar
  • Electric eddy-current brake with integrated flywheel
  • AC-Motor including control and power electronics
  • Foundation cover plate (traversable up to 3 t)
  • Varnished with high-quality powder coating: Anthracite Grey, RAL 7016 (frame) Ruby Red, RAL 3003 (rollers)


Operating modes of the tester in conjunction with emissions
analyser or external PC:

  • Driving resistance simulation for ASM-5015 and ASM-2525 emission tests (Acceleration Simulation Mode) in line with the BAR '97 specifications
  • Driving resistance simulation for transient emissions testing in line with standard test cycles (note: vehicle inertia simulation in deceleration mode limited to 2000 lbs (900 kg)
  • Determination and compensation of equipment's own losses ('Parasitic losses') according to BAR'97 specifications. Acceleration of the roller set with built-in AC-Motor to approx. 50 km/h with subsequent performance of roll-off tests ('coast-down')
  • Performance measurement (wheel power) possible in the operation modes:
    • constant speed
    • constant tractive force
  • Control of the tester via serial interface RS-232 (e.g. emissions analyser which meets ‘BAR '97’ specifications or an external PC)


Description Roller Set Adjusting Device:

  • Hydraulic roller set adjustment with cover and sliding plates


  • Test bench is not CE-compliant delivery to non-EU countries only

Downloads

Sales documents

Technical Datasheet

Technical Data

Technical Data:

Axle load2700 kg
Dimensions (L x W x H)5660 x 3450 x 800 mm
Weight Roller Setapprox. 820 kg
Roller length per roll850 mm
Min. track740 mm
Max. track2440 mm
Roller diameter217 mm
Roller axle distance444 mm
Displacement1300 mm
Axle distance2200 - 3500 mm
Mechanical inertia900 kg (2000 lbs)
Power supply230 V 50 Hz
Fuse20 A, slow-blow
Compressed air for lifting bar6 - 10 bar
Min. testable wheel diameter450 mm
Max. test speed160 km/h
Max. wheel power50 kW
Max. tractive force3000 N
Packaging dimensions (L x W x H)3600 x 850 x 1000 mm
Weight including packagingapprox. 920 kg


Technical Data Roller Set Adjusting Device:

Wheelbase min./max.2200 / 3500 mm
Weight including packagingapprox. 1550 kg
Packaging dimensions (L x W x H)4100 x 1650 x 1000 mm
