product details / scope of delivery

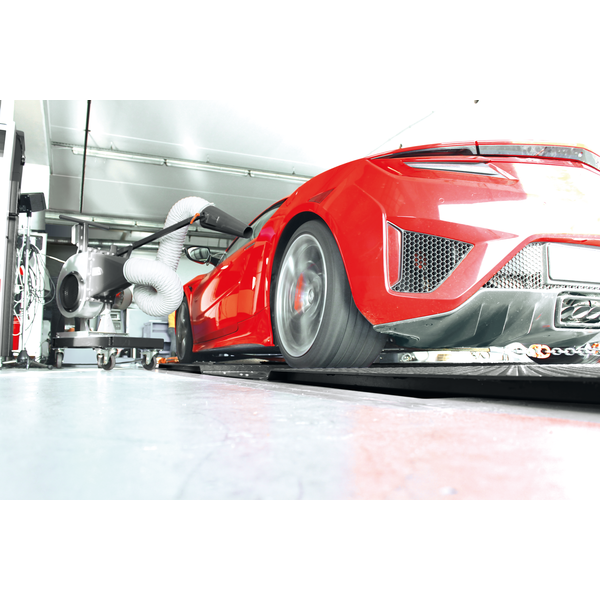

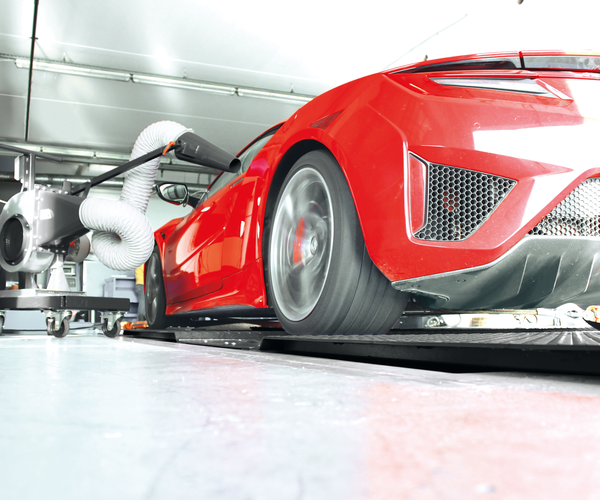

  • Extendible height-adjustable brackets for specific cooling of sensitive vehicle areas
  • Additional targeted cooling of intercoolers, exhaust manifolds, oil coolers and other areas
  • Varnished with high-quality powder coating: Window Grey, RAL 7040


Sales documents

Technical Datasheet

Technical Data

Technical Data:

Volumetric flow540 m³/h
Max. outflow speed at the nozzle140 km/h
Motor power2.2 kW
Fuse16 A
Power supply3/N/PE 400 V 50 Hz
Total weight60 kg
Dimensions (H x W x L)1150 x 470 x 1650 (max. 2650) mm
Max. projection2000 mm
