product details / scope of delivery

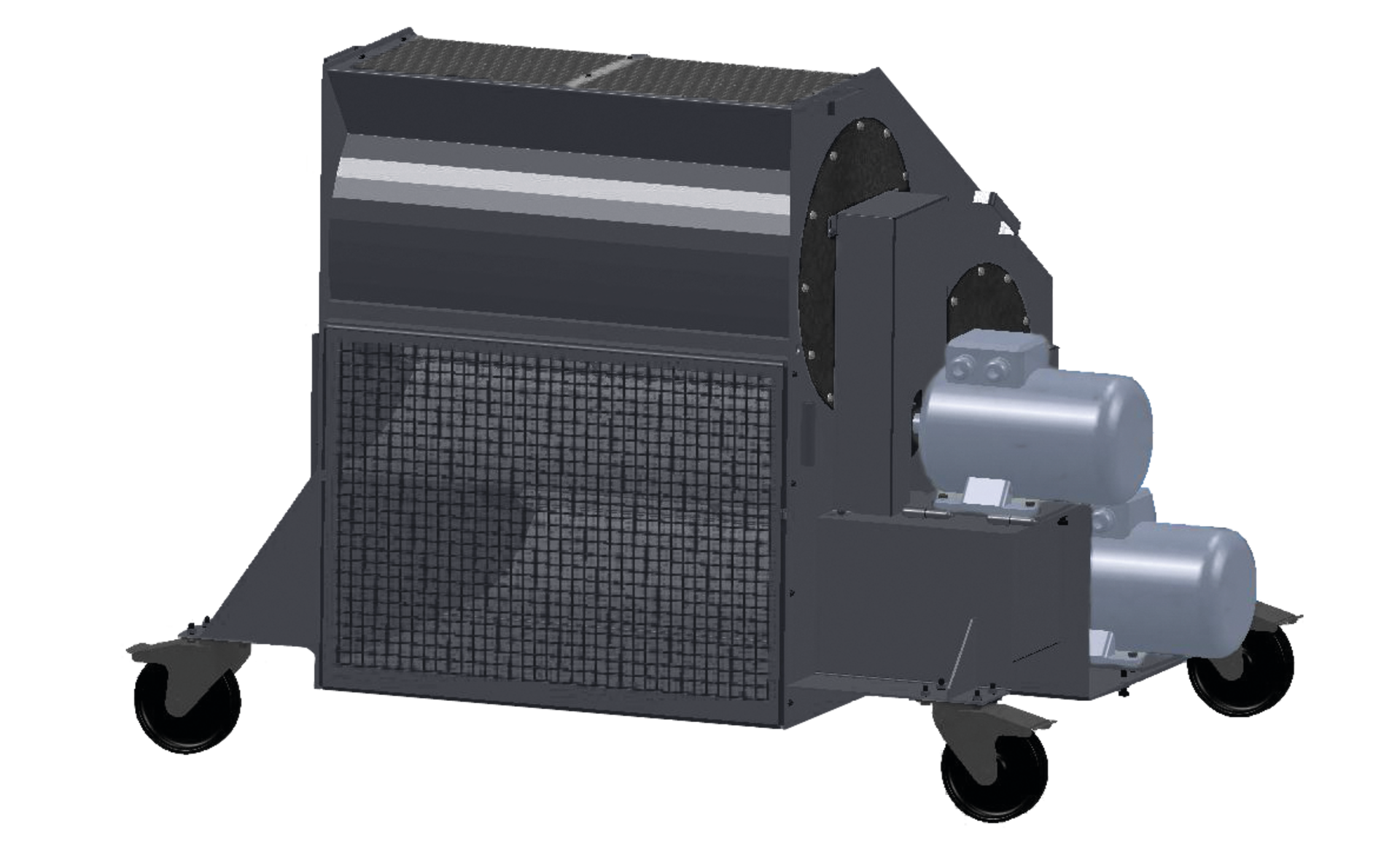

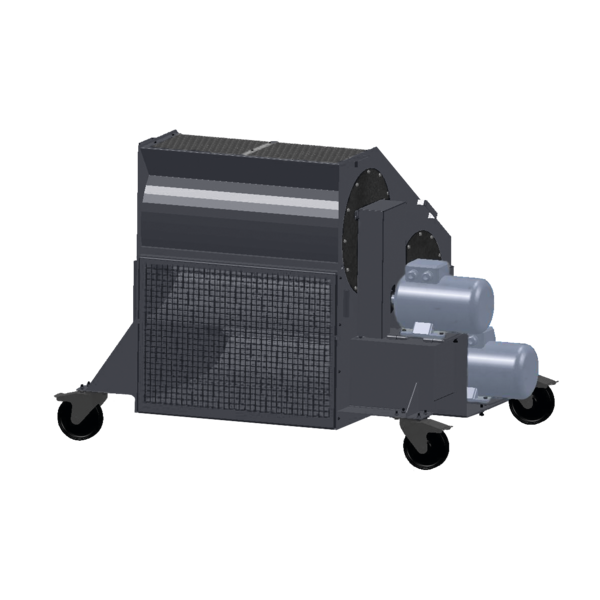

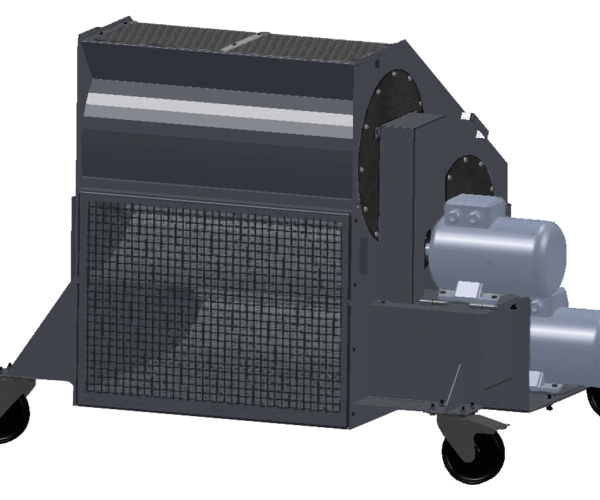

  • Powerful universal air-stream fan for all cars and trucks
  • Wide exhaust passage at varying heights for the targeted air routing towards the vehicle radiator and underneath the vehicle radiator in order to prevent heat build-up
  • Prevents vehicle damage and overheating of the drive units
  • Varnished with high-quality powder coating: Window Grey, RAL 7040


Sales documents

Technical Datasheet

Technical Data

Technical Data:

Air powerapprox. 53000 m³/h
Airflow velocityapprox. 100 km/h
Motor power2 × 7.5 KW
Fuse50 A
Power supply400 V
Air outlet opening (L x W)890 x 260 mm
Air outlet height 1st / 2nd outlet205 / 570 mm
Weightapprox. 600 kg
Dimensions (H x W x L)1335 x 1227 x 1640 mm
