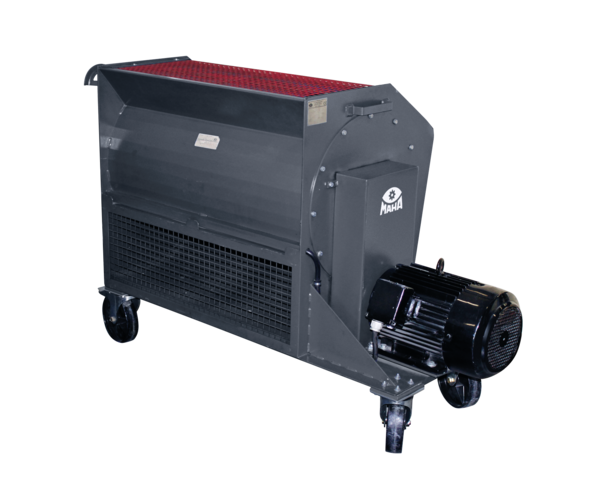

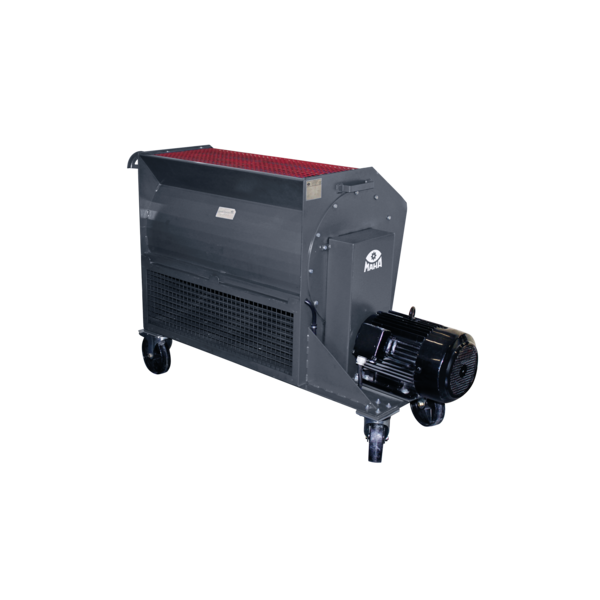

AIR 7 VP 160004

The powerful radial air stream fan AIR 5 is designed for vehicle cooling and prevents heat accumulation on vehicles. The universally applicable air stream blower is designed for cooling cars and motorcycles and prevents damage to the vehicle and drive units. Four steerable, rubber-tired fixed castors also provide flexible and uncomplicated steering of the AIR 7.

product details / scope of delivery

Description:

  • Powerful universal air-stream fan for all cars, trucks and motorcycles
  • Wide exhaust passage for targeted air routing towards the vehicle radiator and underneath the vehicle in order to avoid any heat build-up

*Prevents vehicle damage and overheating of the drive units

  • Easily manoeuvrable with 4 rubber-tyred steerable fixed castors
  • Varnished with high-quality powder coating: Window Grey, RAL 7040

Downloads

Sales documents

Brochures
Brochure AIR
DE EN ES FR
Brochure (Printable version) AIR
DE EN ES FR
Technical Datasheet
Technical Datasheet AIR 7
DE EN
Technical Datasheet (Printable version) AIR 7
DE EN

Technical Data

Technical Data:

Air power26500 m³/h
Airflow velocity98 km/h
Motor power5.5 kW
Fuse25 A
Powersupply3/N/PE x 400 V 50 Hz
Weight192 kg
Dimensions (H x W x L)900 x 730 x 1250 mm
