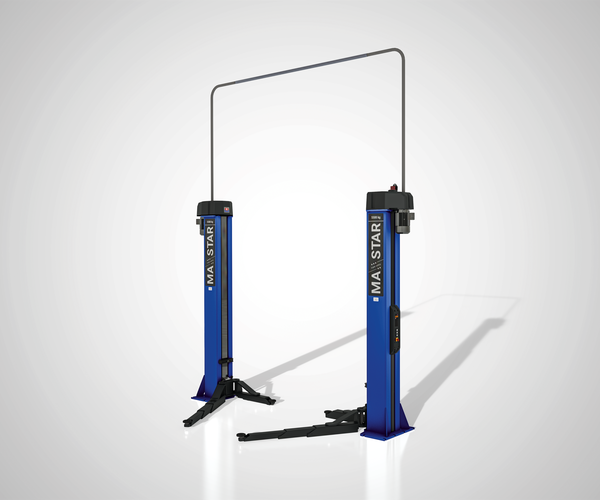

MA STAR 6.5 VP 451190

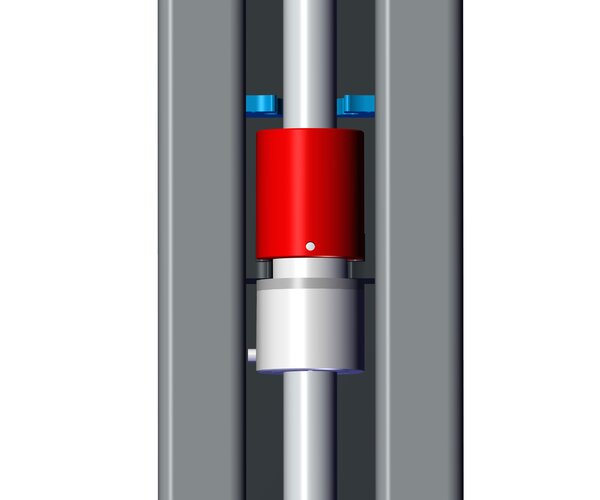

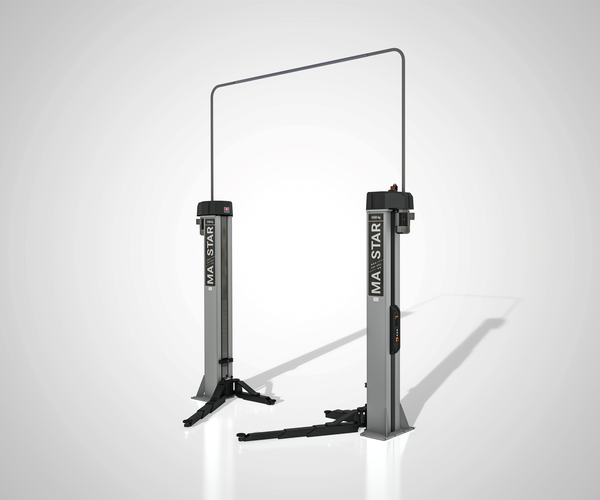

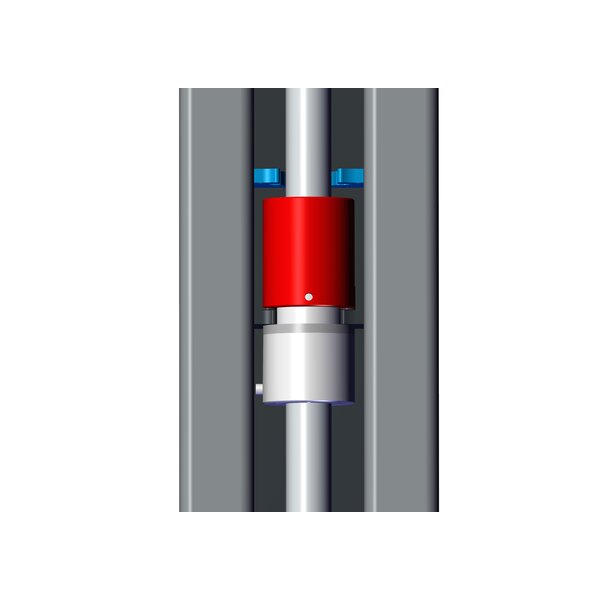

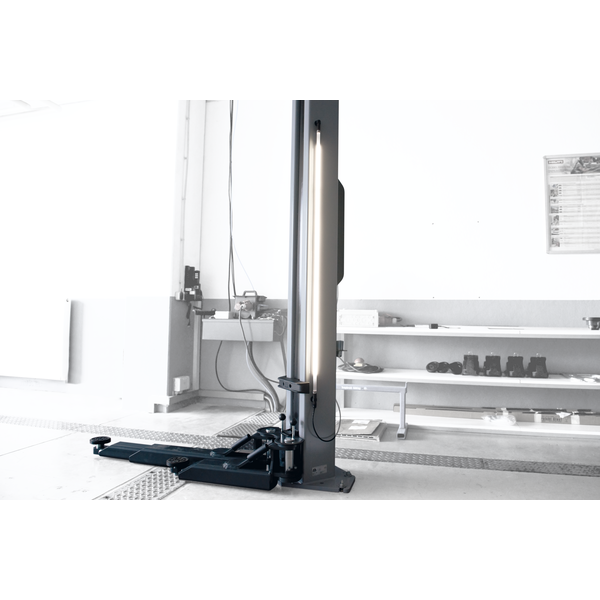

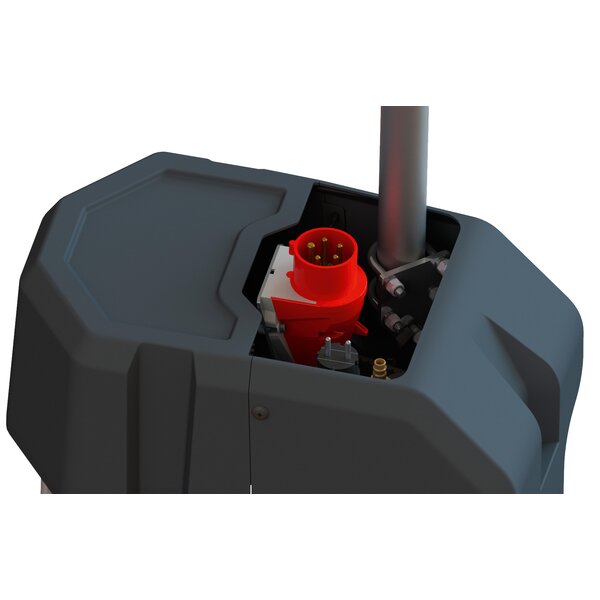

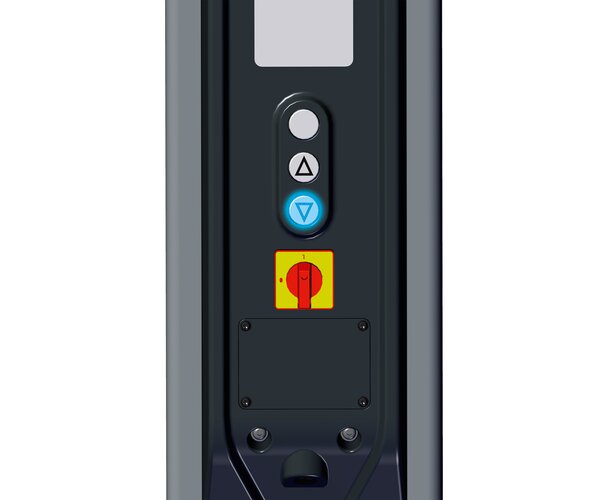

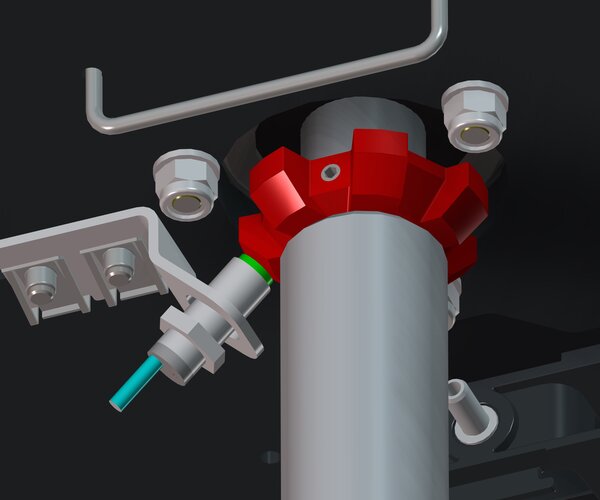

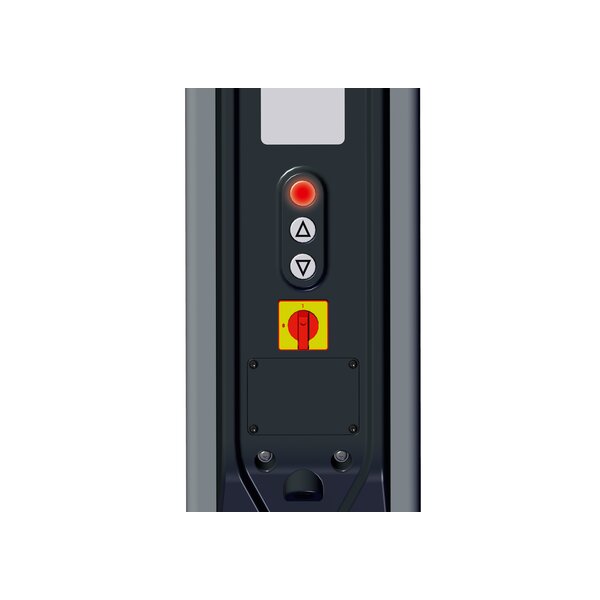

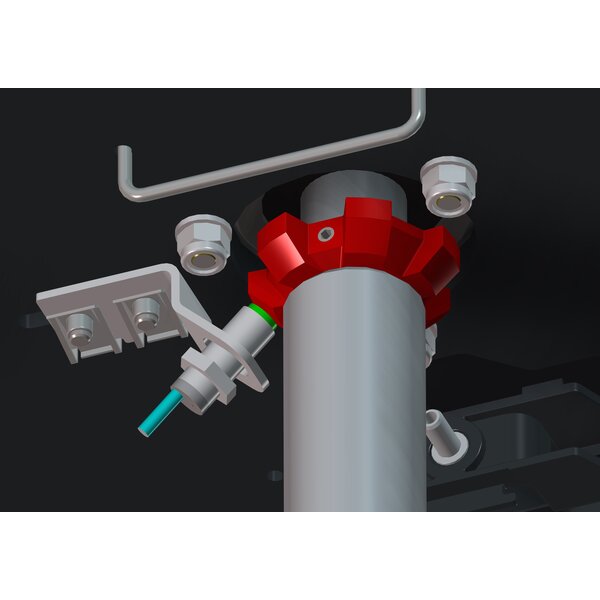

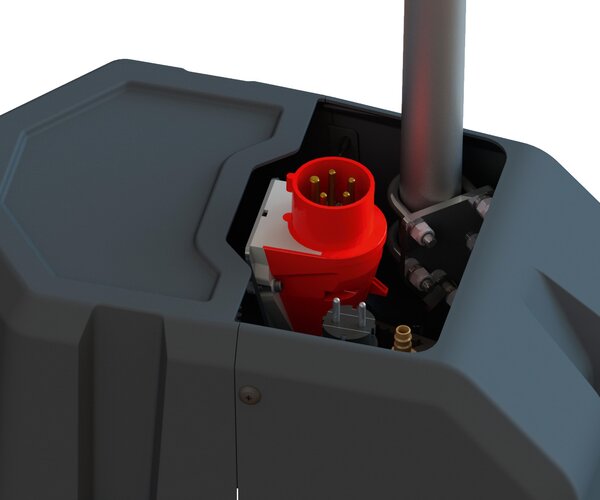

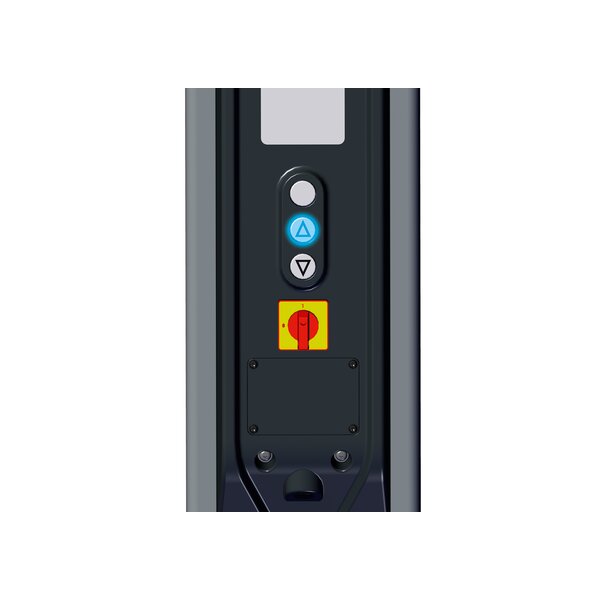

The 5-star lift MA STAR 6.5, which features stable and torsion-resistant columns of edged H-section steel, lifts cars and vans with a total weight of up to 6.5 t. The two post lift guarantees triple safety thanks to its spindle nut package with self-locking thread, "giraffe" (patent pending) nut breakage detection and motor brake. The MA STAR also impresses with its straightforward plug and play commissioning as well as its intuitive, LED-based operation.

COMFORT version - options available.

product details / scope of delivery

COMFORT version - options available
(colour, support aid, mounted on roller bearings)

  • RAL 5010 -

Description:

  • Load capacity 6500 kg
  • Triple safety
  • Symmetrical support arms
  • Variable installation width
  • Accommodates vehicles from small cars to vans with long wheelbase
  • High-quality powder coating:

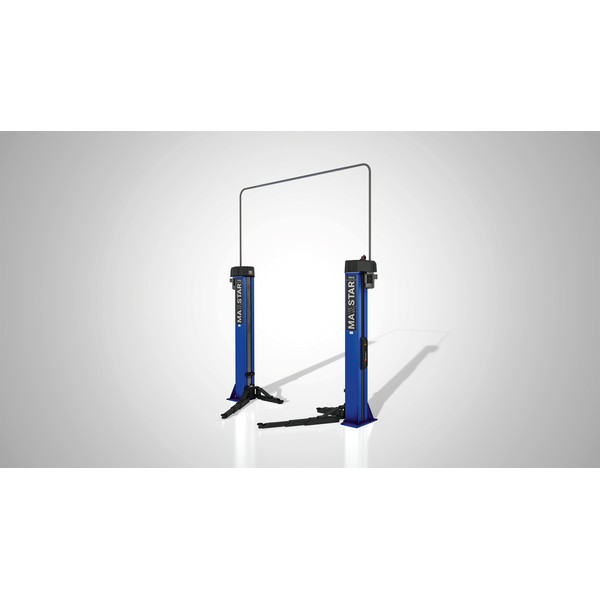

    • Gentian blue, RAL 5010 (columns)

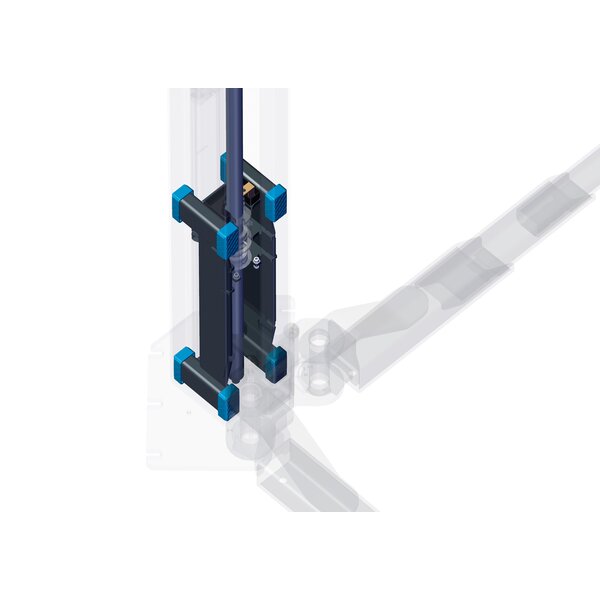

    • Anthracite grey, RAL 7016 (lifting carriages, support arms)


Scope of delivery:

  • 2 columns with operating unit
  • 4 symmetrical support arms, double telescopic
  • Support discs with plug-in system
  • Cable bridge
  • Spindle oil (0.5 l)
  • Operating instructions
  • CE/UKCA Declaration of Conformity
  • Transport packaging

Downloads

Sales documents

Brochures
Brochure MAHA MA-STAR
DE EN
Brochure (Printable version) MAHA MA-STAR print
DE EN
Technical Datasheet
Technical Datasheet MA STAR 6.5
DE EN
Technical Datasheet (Printable version) MA STAR 6.5
DE EN

Technical documentation

Operating Instructions
Operating Instructions MA STAR 3.5 | 5.5 | 6.5 (Complete version)
DE EN ES FR
Product drawings
MA STAR 6.5 Data sheet, main dimensions (drive through clearance 2630mm)
EN
MA STAR 6.5 Data sheet, main dimensions (drive through clearance 2630mm)
DE
MA STAR 6.5 Data sheet, main dimensions (drive through clearance 2780mm)
EN
MA STAR 6.5 Data sheet, main dimensions (drive through clearance 2780mm)
DE

Technical Data

Technical data:

Load capacity CE6500 kg
Lifting height max.2065 mm
Lifting / lowering time (load-dependent)approx. 44/44 s
Bottom clearance of support arms144 mm
Adjustment range of support disc85 - 115 mm
Pick-up range of support arms1037 - 1987 mm
Overall width*4192 mm
Outside base plates*4043 mm
Outside columns*3603 mm
Inside columns*2973 mm
Drive-through width2630 - 2780 mm
Column height3243 mm
Overall height max. (with cable bridge)5193 mm
Drive power2 × 4.0 kW
Power supply3/N/PE 400 V 50 Hz
FuseC32 A
Weight1520 kg
Packaging dimensions (L x W x H)
2 Packages, each with3185 x 800 x 1100 mm
Required concrete qualityC 20/25
Required thickness of concrete slab w/o screed min.220 mm

*Dimension based on Drive-through width 2630 mm
