product details / scope of delivery
Description:

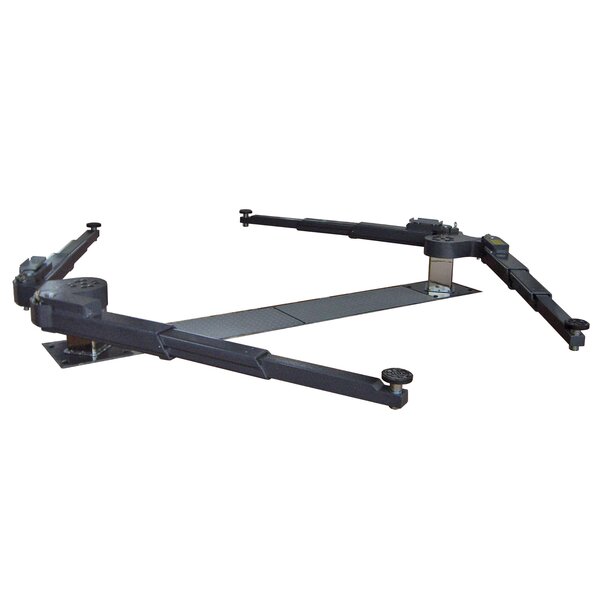

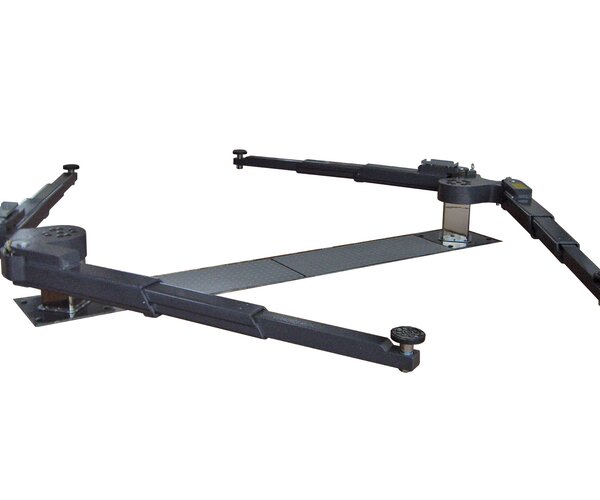

Two-post inground lift with swing arms,
to pick up vehicles in the sill area or at the frame.
Suitable for small vehicles up to vans (up to 6.5t) with long
wheelbase
Swing arm support (6.5 KS):
- Optimum vehicle pick-up with maximum accessibility, especially for repairs under the vehicle
- Triple telescopic swing arm support for stepless adjustment for a large and flexible pick-up range
- Large clearance for easy approach to the lift with bevelled edges on the swing arm carrier to protect the rims
- Precise pick-up of vehicles due to height-adjustable support discs with thread and plug-in system
- Multiflexible plug-in system for support extenders or special supports for various vehicle types for secure, positive-locking vehicle fixation in the product range
- Comes standard with fully rubberised support plate without metal parts to exclude electrical conductivity
- Automatically engaging support arm lock, which is convenient and ergonomic to operate and particularly suitable for manual readjustment of the support arms
- Tool tray on swing arm carrier included in standard scope of delivery
SQUARE lift unit:
- Outstanding rigidity and optimumsafety thanks to torsion-resistant square posts
- Low-noise operation due to very quiet motor in the installation box
- Optionally usable with mineral organic oil with high durability
- Electronic lift control with no-contact, wear-free limit switches and visual error display
- Very smooth running due to sliding, long-life special nickel coating on posts with robust, low-maintenance post guide
- Protected internal hydraulic safety cylinder guarantees lengthy service life
- Movable synchronisation and safety yoke for redundant operation (acc. to EN DIN 1493)
- High lifting/lowering speeds are guaranteed in a load-dependent range of 20 ýÿ 30 seconds
- Integrated, battery-operated emergency lowering
- Optimum workplace ergonomics thanks to optional, standard-independent control system via energy box or flush-mounted switching system
Scope of delivery:
- Swing arm support (KS) with swing arm carrier and swing arm extensions,anthracite grey (RAL 7016)
- Magnetic wheel nut tray (2 pcs)
- Lifting unit with clamping system and movable yoke
- Cable and fastening material
- Installation box/frame not included in scope of delivery
- Emergency-down cable for connection to the control box
- Control unit with 10 m control cable (oil flex cable)
- Lockable main switch
- Pinch point protection by CE stop instead of foot deflector
- Operating instructions
- EC/UKCA Declaration of Conformity
Technical Data
Technical data:
Load capacity CE | 6500 kg |
Post distance | 2700 mm |
Drive-through width | 2440 mm |
Overall width | 3380 mm |
Min. height of support arms | 109, 124, 144 mm |
Adjustment range of support discs | 101 - 137 mm |
Lifting height max. | 1952 mm |
Installation depth | 2382 mm |
Post dimensions, square | 180 mm |
Lifting/lowering time, load-dependent | approx. 40/35 s |
Hydraulic oil quantity (not incl. in delivery) approx. 28 l | |
Oil quality | HLP-D 22 |
Operating pressure | 215 bar |
Recommended installation box | VZ 972559 |
Control unit (H x W x D) | 320 x 220 x 120 mm |
Drive power | 3.0 kW |
Fuse protection gG | 16 A |
Power supply | 3/N/PE 400 V 50 Hz |
