product details / scope of delivery
Description:

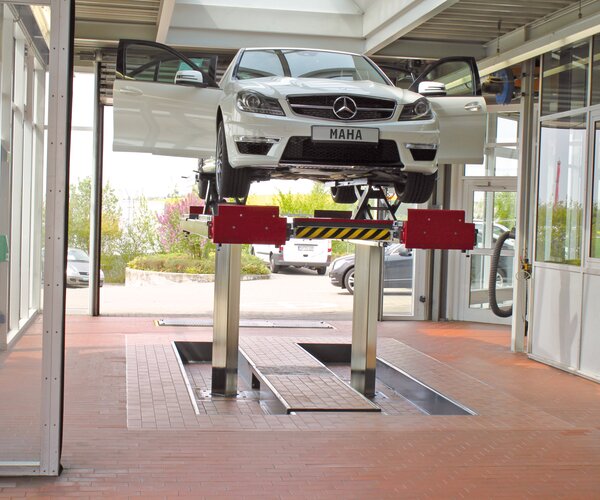

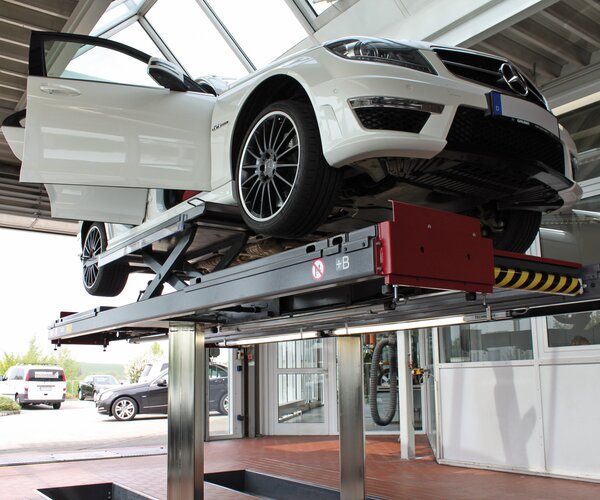

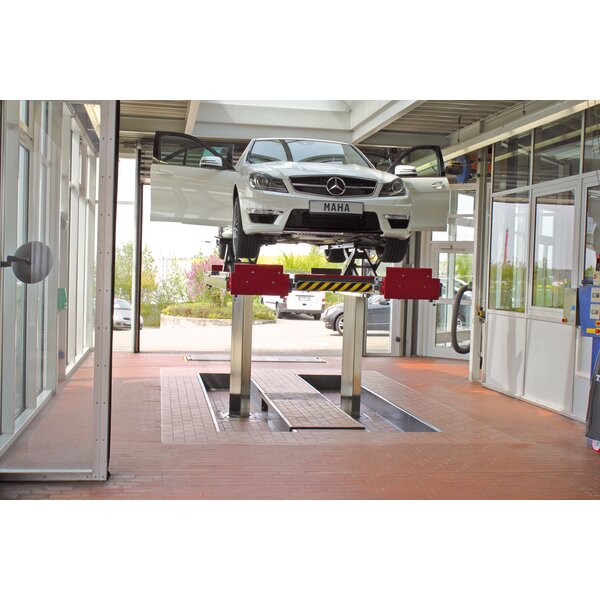

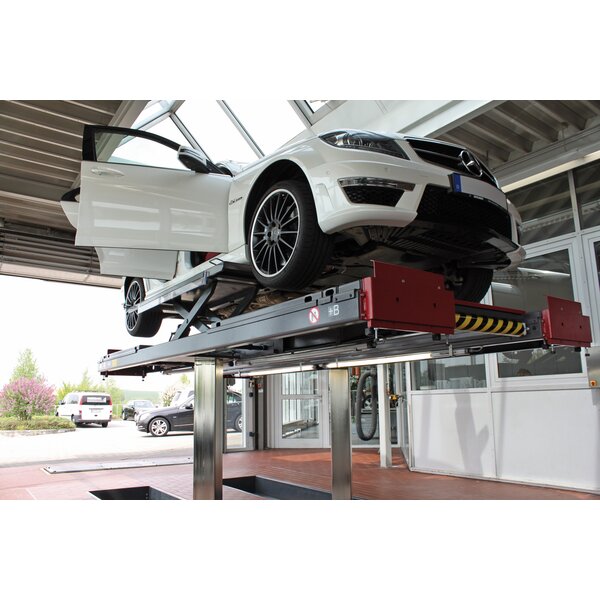

Two-post in-floor lift with driving platforms and
wheel-free jack
Description of driving platform:

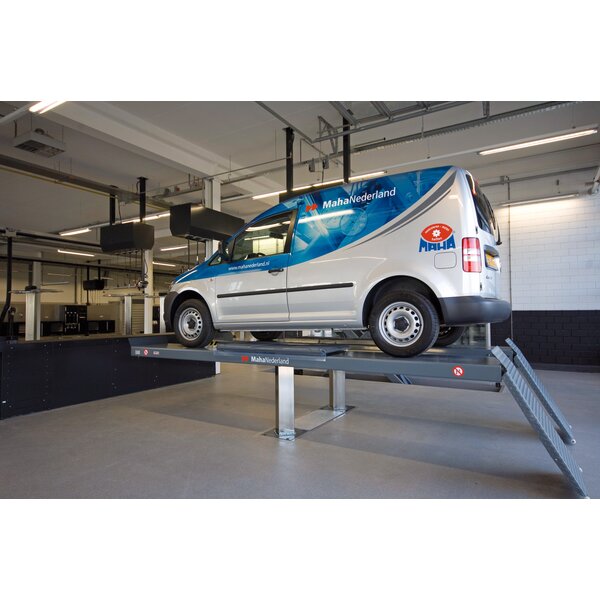

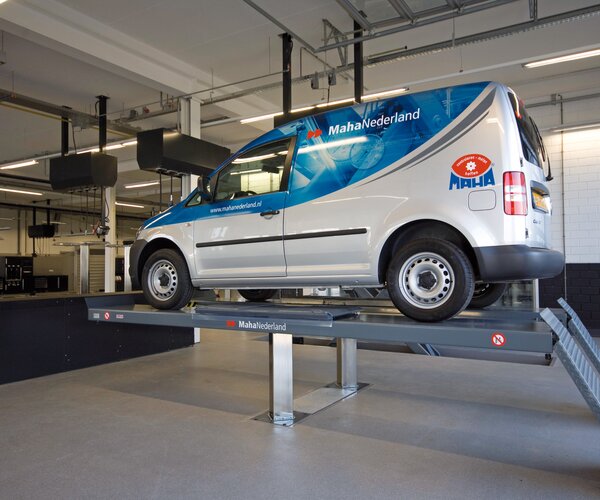

- Driving platform length 4400 mm ideal for cars and small transporters
- Ample freedom of movement below the lifting platform thanks to the compact post-lifting unit and resulting optimum lighting below the raised vehicle
- Post lift with two lifting variants in one work area
- Rapid lifting at wheels for inspection or chassis measurement

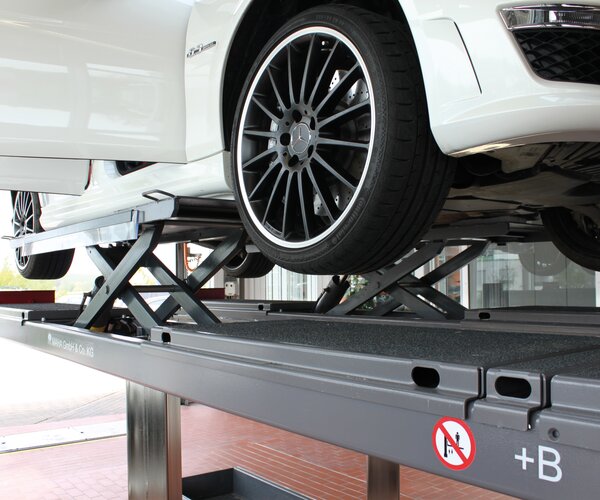

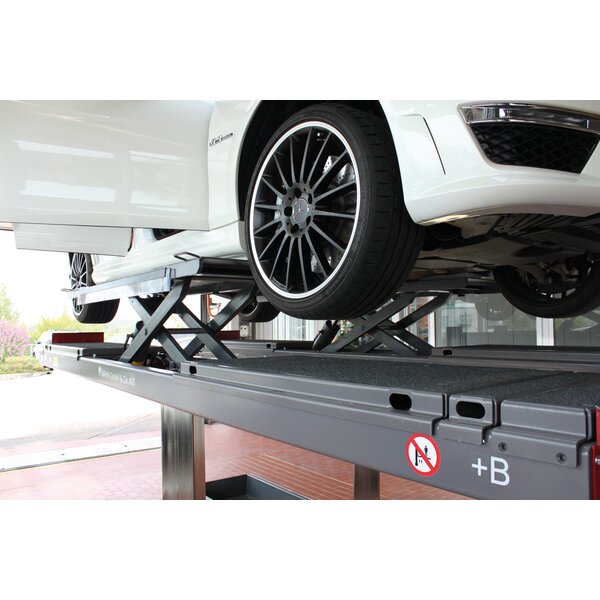

- Lifts car wheels from surface, wheels exposed for repair or inspection, lifting distance 500 mm
- Wheel-free jack extension elements infinitely adjustable while jack is in its starting position, thereby eliminating the need for time-consuming jacking for set-up and functioning as an interim means of stopping the jack from moving backwards in emergency cases
- Lift can be driven onto easily thanks to wheel-free jack platforms with full driving platform width
- Wheel-free jack holder fully granulate-coated as standard
- Optionally, can be upgraded to vehicle check-in lift with driving platform levelling for level driving, with axle play tester to inspect chassis assemblies
- Optional conversion to chassis measurement lift with precisely aligned driving platforms, sliding plates for tension-free wheel support, driving platform levelling and axle measurement supports
- A high-quality powder-coated platformcovering assists in corrosion protection and adds a significant upgrade in terms of appearance
- Optional driving platform coating with granulate coating or aluminium panelling
- Additional corrosion-resistant treatment in the seamregion and body cavity-sealing increases the service life
- Pre-integrated compressed air connection and optional 230V/1PH energy supply in runways
- All cables are protected inside the SQUARE post
- Optional, no-dazzle rotatable LEDlighting
- Various assembly variants for optimum use:
- Driving platform resting on floor with low drive-on height and platform movement area with no tripping hazard edges
- Driving platforms flush with floor to facilitate driving
onto the lift, no protruding assemblies in the lift area
- Driving platforms flush with floor to facilitate driving
onto the lift, no protruding assemblies in the lift area
with complete floor levelling of the platform movement
area with no tripping hazard edges
- Runways and ground levelling pre-equipped for the use of an optional axle lift
- Pinch point and shear point protection thanks to CE stop
SQUARE lift unit:
- Outstanding rigidity and optimum safety thanks to torsion-resistant square post
- Very quiet pump and very quiet electric motor in corrosion-proof oil-submerged design, optionally with bio oil
- Electronic lift control with no-contact, wear-free limit switches andvisual error display
- Very smooth running due to special long-life nickel coating on posts that promotes sliding, with robust,
low-maintenance
- post design
- Protected internal hydraulic safety cylinder guarantee lengthy service life
- Mobile synchronisation and safety yoke for careful distribution of force in the post guide as standard
- High lifting/lowering speeds are guaranteed (max. 30/20 s)
- Battery-operated emergency lowering
- Optimisation of workplaceergonomics mentioned thanks to optional, standard-independent control via traffic-light energy module or flush-mounted switching system
Scope of delivery:
- Driving platform 4400 mm and wheel-free jack powder-coated Anthracite Grey(RAL 7016)
- Lift unit with hydraulic assembly
- Ramps and drive-on plates
- Rapid-action compressed-air coupling mounted on driving platform
- Wiring and mounting material
- Lift unit with movable yoke
- Installation box/installationframe not included in delivery
- Emergency DOWN cable for connection to switch box
- Control unit with 2 x 10 m control cables (flexible oil cables)
- Lockable master switch
- Operating manual and test log
- EC Declaration of ConformityCE
Technical Data
Technical data:
Load capacity CE | 3500 kg |
Load capacity CE wheel-free jack | 3500 kg |
Dimensions of driving | |
platform (L x W x H) | 4400 x 617 x 126 mm |
Inner drive-through width | 840 mm |
Total dimensions (L x W x H) | 5471 x 2074 x 217 mm |
Max. lifting height | 2016 mm |
Lifting distance, wheel-free jack | 500 mm |
Wheel-free jack lengthways holder, | |
continuous | 1325 - 2042 mm |
Wheel-free jack crosswise holder | 840 - 2074 mm |
Wheel-free jack installation height | 56 mm |
Postdimensions, square | 180 mm |
Post spacing | 1350 mm |
Installation depth | 2382 mm |
Lifting/lowering time depending on load | approx. 30/20 s |
Lifting/lowering time of wheel-free jack | |
depending on load | approx. 11/11 s |
Hydraulic oil volume (not included) | approx. 28 l |
Operating pressure/wheel-free jack | 180/210 bar |
unit (H x W x D) | 400 x 280 x 120 mm |
Drive power | 3.0 kW |
Fuse gG | 16 A |
Power supply | 3/N/PE 400 V 50 Hz |
