Description:
Two-post inground lift with swing arms,
to pick up vehicles in the sill area or at the frame.
Suitable for small vehicles up to vans (up to 3.5 t) with
long wheelbase

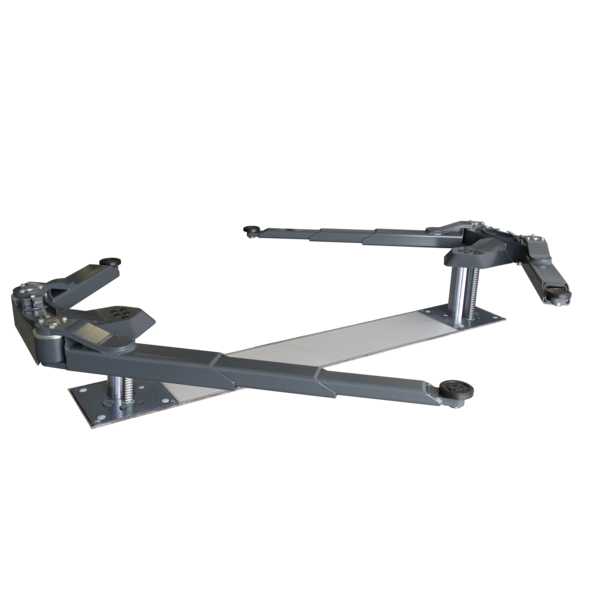

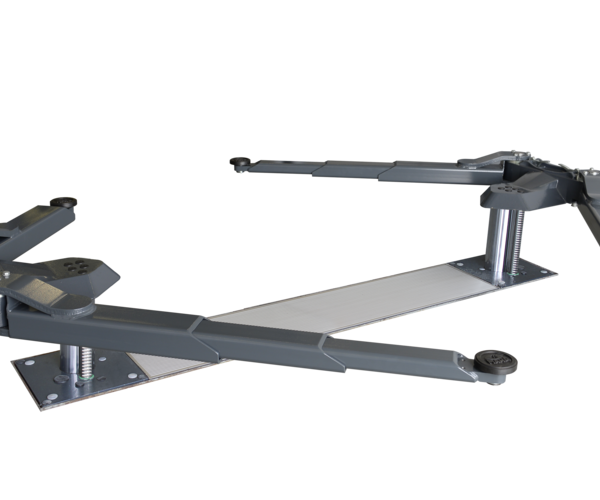

Swing arm support (3.5 GS):
- Optimum vehicle pick-upwith maximum accessibility, especially for repairs under the vehicle
- Triple telescopic swing arm support for stepless adjustment for a large and flexible pick-up range
- Optimally flat swing arm extensions with minimum heights of 84, 93, 102 mm with extra flat extension in the last telescopic stage
- Smooth-running support arm extension due to optimum guidance with robust end stop with solid stop plates
- Large clearance for easy approach to the lift with bevelled edges on the swing arm carrier to protect the rims
- Precise pick-up of vehicles due to height-adjustable support discs with thread and plug-in system
- Multiflexible plug-in system for support extenders or special supports for various vehicle types for secure, positive-locking vehicle fixation in the product range
- Comes standard with fully rubberised support disc without metal parts to exclude electrical conductivity
- Automatically engaging support arm lock, which is convenient and ergonomic to operate and particularly suitable for manual readjustment of the support arms
- Integrated tool tray on swing arm carrier included in standard scope of delivery
- Optional hinged-lid frame for flush-floor installation and flexible use of the workplace
- Optional extension of lift travel by 198 mm possible in conjunction with deeper installation box
DUETT lift unit:
- Lift with precise mechanical toothed rack synchronisation andsimultaneous redundant mechanical safety feature
- Corrosion-resistant hydraulic piston; self-lubricating as piston dips into hydraulic oil with every lift
- Low-noise operation due to very quiet motor in the installation box
- Optionally usable with mineral organic oil with high durability
- Electronic lift control with no-contact, wear-free limit switches and visual error display
- Hydraulic power unit in the installation box (standard), can optionally be positioned outside the box
- Simple, suspended installation of the lift, ensuring advantageous force transmission into the hall floor
- High lifting/lowering speeds are guaranteed in a load-dependent range of 30 ýÿ 35 seconds
- Integrated,battery-operated emergency lowering
- Optimum workplace ergonomics thanks to optional, standard-independent control system via energy box or flush-mounted switching system
Scope of delivery:
- Swing arm support (GS) with swing arm carrier and swing arm extensions, anthracite grey (RAL 7016)
- Lifting unit with clamping system, toothed rack and synchronising shaft
- Cable and fastening material
- Installation box/frame not included in scope of delivery
- Emergency-down cable for connection to the control box
- Control unit with 2 x 10 m control cable (oil flex cable)
- Lockable main switch
- Pinch point protection by CE stop instead of foot deflector
- Operating instructions
- EC/UKCA Declaration of Conformity
Technical Data
Technical data:
Load capacity CE | 4500 kg |
Post distance | 2500 mm |
Drive-through width | 2185 mm |
Overall width | 3355 mm |
Min. height of support arms | 84, 93, 102 mm |
Adjustment range of support discs | 84 - 115 mm |
Lifting height max. | 1978 mm |
Installation depth | 2320 mm |
Post diameter | 125 mm |
Lifting/lowering time, load-dependent | approx. 35 s |
Hydraulic oil quantity (not incl. in delivery) approx. 111l | |
Oil quality | HLP-D 22 |
Operating pressure | 32 bar |
Recommended installation box | VZ 972557 |
Control unit (H x W x D) | 320x 220 x 120 mm |
Drive power | 3.0 kW |
Fuse protection gG | 16 A |
Power supply | 3/N/PE 400 V 50 Hz |
