product details / scope of delivery

Description:

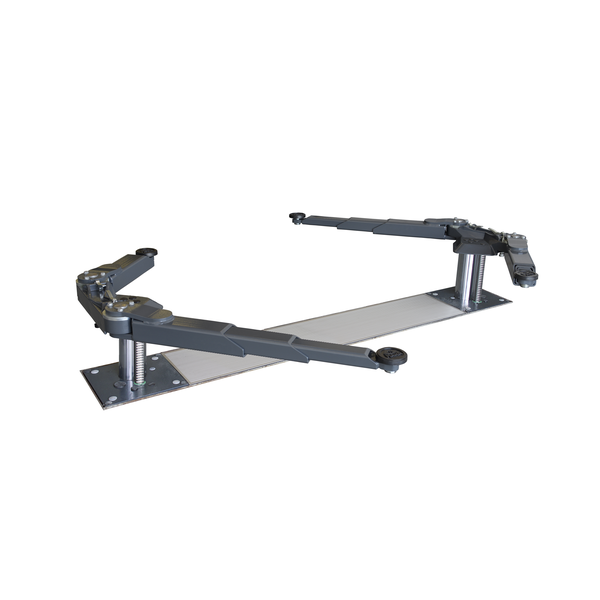

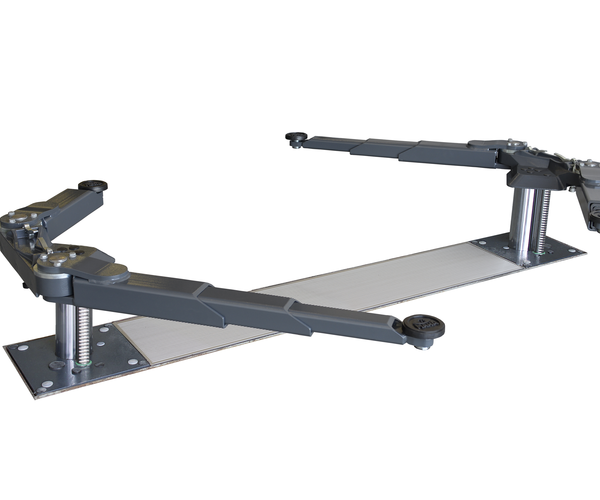

Two-post inground lift with swing arms,
to pick up vehicles in the sill area or at the frame.
Suitable for small vehicles up to vans (up to 3.5 t) with
long wheelbase

Swing arm support (3.5 GS):

  • Optimum vehicle pick-upwith maximum accessibility, especially for repairs under the vehicle
  • Triple telescopic swing arm support for stepless adjustment for a large and flexible pick-up range
  • Optimally flat swing arm extensions with minimum heights of 84, 92, 102 mm
  • Smooth-running support arm extension due to optimum guidance with robust end stop with solid stop plates
  • Large clearance for easy approach to the lift with bevelled edges on the swing arm carrier to protect the rims

*Precise pick-up of vehicles due to height-adjustable

  • support discs with thread and plug-in system
  • Multiflexible plug-in system for support extenders or special supports for various vehicle types for secure, positive-locking vehiclefixation in the product range
  • Comes standard with fully rubberised support disc without metal parts to exclude electrical conductivity
  • Automatically engaging support arm lock, which is convenient and ergonomic to operate and particularly suitable for manual readjustment of the support arms
  • Integrated tool tray on swing arm carrier included in standard scope of delivery
  • Optional hinged-lid frame for flush-floor installation and flexible use of the workplace

*Optional extension of lift travel by 198 mm possible

  • in conjunction with deeper installation box


DUETT lift unit:

  • Lift with precise mechanical toothed rack synchronisation and simultaneous redundant mechanical safety feature
  • Corrosion-resistant hydraulic piston; self-lubricating as piston dips into hydraulic oil with every lift
  • Low-noise operation due to very quiet motor in the installation box
  • Optionally usable with mineral organic oil with high durability
  • Electronic lift control with no-contact, wear-free limit switches and visual error display
  • Hydraulic power unit in the installation box (standard), can optionally be positioned outside the box
  • Simple, suspended installation of the lift, ensuring advantageous force transmission into the hall floor
  • High lifting/lowering speeds are guaranteed in a load-dependent range of 30 ýÿ 35 seconds
  • Integrated, battery-operated emergency lowering
  • Optimum workplace ergonomics thanks to optional, standard-independent control system via energy box or flush-mounted switching system


Scope of delivery:

  • Swing arm support (GS) with swing arm carrier and swing arm extensions, anthracite grey (RAL 7016)
  • Lifting unit with clamping system, toothed rack and synchronising shaft
  • Cable and fastening material
  • Installation box/frame not included in scope of delivery
  • Emergency-down cable for connection to the control box
  • Control unitwith 2 x 10 m control cable (oil flex cable)
  • Lockable main switch
  • Pinch point protection by CE stop instead of foot deflector
  • Operating instructions
  • EC/UKCA Declaration of Conformity


Downloads

Sales documents

Brochures
Technical Datasheet

Technical Data

Technical data:

Load capacity CE3500 kg
Post distance2500 mm
Drive-through width2180 mm
Overall width2853 mm
Min. height of support arms83, 92, 101 mm
Adjustment range of support discs78 - 109 mm
Lifting height max.1972 mm
Installation depth2320 mm
Post diameter125 mm
Lifting/lowering time, load-dependentapprox. 35 s
Hydraulic oil quantity (not incl. in delivery) approx. 111 l
Oil qualityHLP-D 22
Operating pressure32 bar
Recommended installation boxVZ 972557
Control unit (H x W x D)320 x 220 x 120 mm
Drive power3.0 kW
Fuse protection gG16 A
Power supply3/N/PE 400 V 50 Hz
