product details / scope of delivery

1-stage telescopic, rail-guided, suspended

Description:

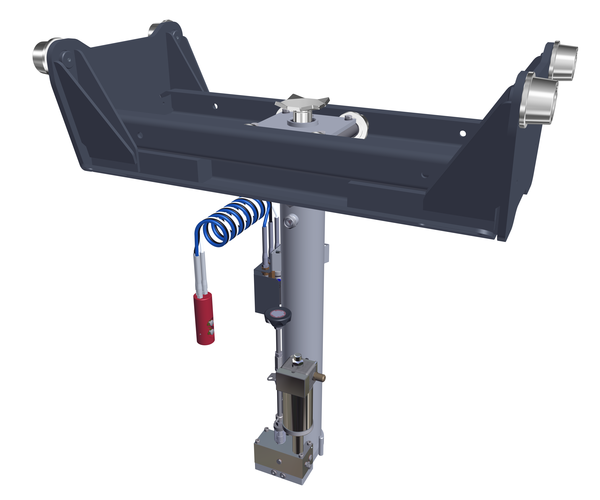

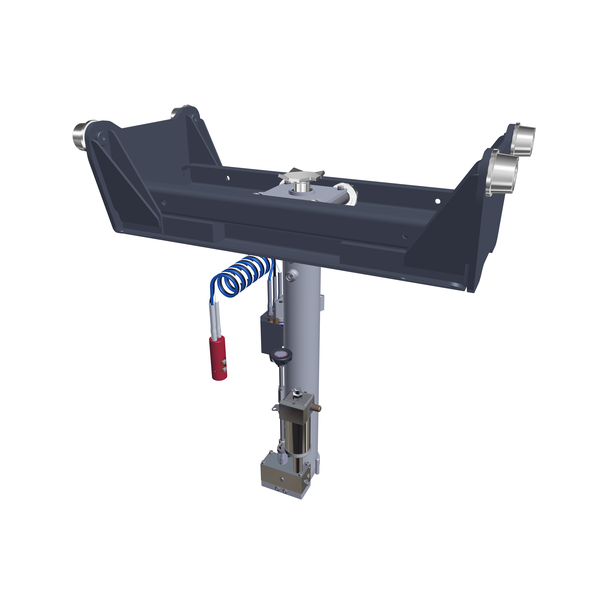

Automatic pit jack
with pneumatic motor and fast control
Specifically for wheel and brake works and dismantling
smaller assemblies in conjunction with axle lifting beams and
support stands for cars and vans with 4.0 t load capacity

Control:

  • Efficient fast control for UP and DOWN movement Integrated as standard
  • Precision, user-friendly, pneumatic manual control cylinder with magnetic bracket for convenient and flexible quick stroke and load lifting with enlarged view into operator radius
  • Delicate and precision lowering of the pit jack with tried & tested system with integrated dead man's control


Design:

  • For precise movement, the pit jack is rail-guided at the top edge of the pit
  • Guarantees easy movement of the pit jack since all rollers are fitted with needle bearings crossways and lengthways
  • Long total stroke of 750 mm to reach high-up units
  • The pit jack is fitted with a downward deep-drawn P carriage for integrating an axle lifting beam at any height
  • Alternatively, a straight S carriage can be used too
  • Variable modular carriage system for various pit widths (700 - 1200 mm) in conjunction with different roller versions and clearance degrees for adapting to work pit circumstances
  • Corrosion-resistant piston rods thanks to self-lubrication
  • High-quality powder-coating protects against corrosive liquids and elevates quality look and feel on a lasting basis


Scope of delivery:

  • Pit jack with hydro-pneumatic automatic control system
  • Deep-drawn P carriage and rollers for rails
  • Standard support lugs 120 x 120 mm
  • Operating instructions
  • EC conformity certificate
  • Colour: Jack base frame RAL 7040
    • Attachments and carriage RAL 7016

Downloads

Sales documents

Brochures
Technical Datasheet

Technical documentation

Operating Instructions
Product drawings

Technical Data

Technical data:

Load capacity (CE)4,000 kg
Stroke distance750 mm
Lifting levels1
Min. pick-up height from roller slide rail- 69 mm
Pit jack depth for roller slide rail1070 mm
Max. lifting height above roller slide rail681 mm
Slide rail width inner dimensions700 – 1200 mm
Carriage adjustable range140 mm
Roller rest width40 mm
Roller rest incline8 % / 4.6°
Max. parallelism deviation slide rails10 mm
Roller diameter (at the flange)80 (95) mm
Support diameter inside/outside30/45 mm
Piston rod diameter45 mm
Oil quantity/quality3.3 l / HLP-D 10
Drive350 l/min. 8 bar
Operating pressure144 bar
Weight198 kg
