product details / scope of delivery

1-stage telescopic, rail-guided, suspended

Description:

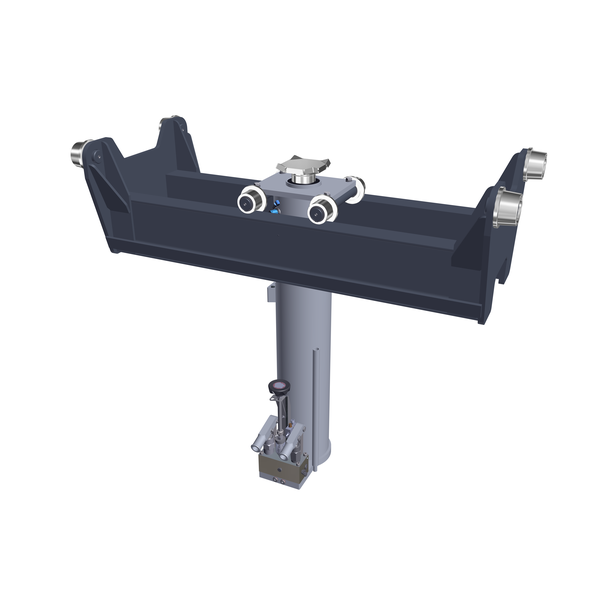

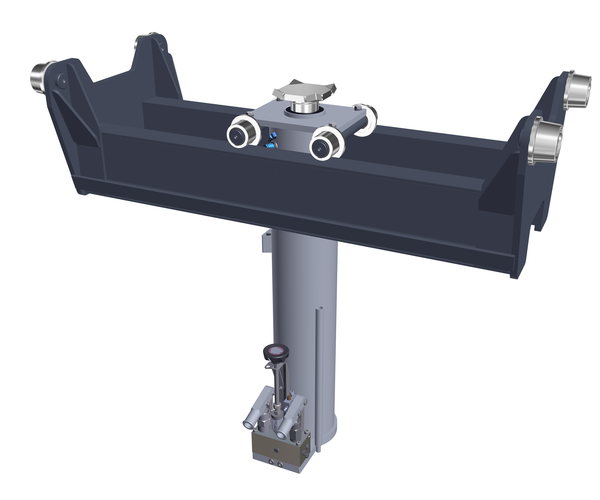

Manual pit jack
with hand pump for load lifting
Specifically for wheel and brake works and dismantling
smaller assemblies in conjunction with axle lifting beams and
support systems for trucks and buses with 20.0 t load capacity

Control:

  • Precision, user-friendly hand pump for fast stroke and lift
  • Delicate and precision lowering of the pit jack with tried & tested system with integrated dead man's control


Design:

  • For precise movement, the pit jack is rail-guided at the top edge of the pit
  • Guarantees easy movement of the pit jack since all rollers are fitted with needle bearings crossways and lengthways
  • Long total stroke of 750 mm to reach high-up units
  • The pit jack is fitted with a downward deep-drawn P carriage for integrating an axle lifting beam at any height
  • Alternatively, a straight S carriage can be used too
  • Pit jack with custom-made carriage adapted specifically to the individual work pit based on dimension sheet in conjunction with different roller versions and degrees of clearance to adapt to the work pit circumstances
  • Corrosion-resistant piston rods thanks to self-lubrication
  • High-quality powder-coating protects against corrosive liquids and elevates quality look and feel on a lasting basis


Scope of delivery:

  • Pit jack with hand pump
  • Deep-drawn P carriage and rollers for rails
  • Standard support lugs 120 x 120 mm
  • Operating instructions
  • EC conformity certificate
  • Colour: Jack base frame RAL 7040
    • Attachments and carriage RAL 7016

Downloads

Sales documents

Brochures
Technical Datasheet

Technical documentation

Operating Instructions
Product drawings

Technical Data

Technical data:

Load capacity (CE)20,000 kg
Stroke distance750 mm
Lifting levels1
Min. pick-up height from roller slide rail- 86 mm
Pit jack depth for roller slide rail1000 mm
Max. lifting height above roller slide rail681 mm
Slide rail width inner dimensions700 – 1200 mm
Carriage adjustable rangeMade-to-measure
Roller rest width40 mm
Roller rest incline8 % / 4.6°
Max. parallelism deviation slide rails10 mm
Roller diameter (at the flange)80 (95) mm
Support diameter inside/outside45/70 mm
Piston rod diameter70 mm
Oil quantity/quality15.3 l / HLP-D 10
DriveManual hydraulic
Operating pressure308 bar
Weight210 kg
