product details / scope of delivery
2-stage telescopic, free-moving, floor-running
Description:

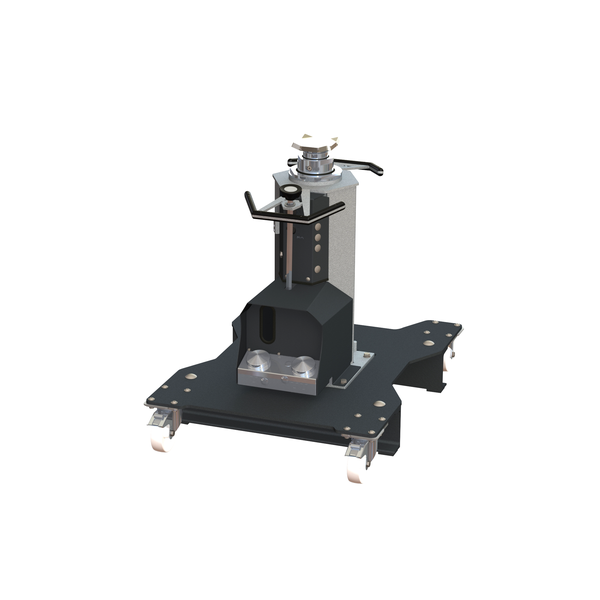

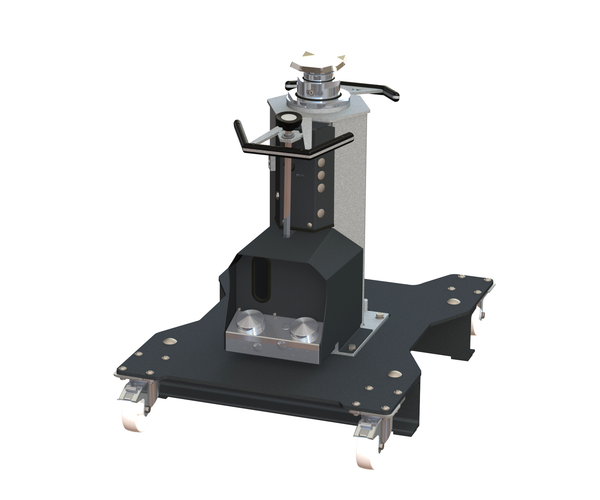

Automatic axle and transmission jack
with pneumatic motor and fast control
in slim design specifically for dismantling assemblies
and lifting vehicles up to 16.5 t
Control:
- Unique synchronised telescopic lifting cylinder for quick load lifting with fast control
- Efficient fast control for UP and DOWN movement integrated as standard
- Precision, user-friendly foot control using compact and robust operating unit for quick lift and load lift
- Delicate and precision lowering of the pit jack with tried <(>&<)> tested system with integrated dead man's control
- Telescopic stages protected against corrosion thanks to the Venturi effect (separation of hydraulic oil and airflow)
- Integrated cover to protect against unintentional operation
Design:
- Freely movable floor-runnable pit jack for flexible use at various work locations, e.g. workshops or work pit
- Floor-running carriage with four guide rollers, two of which are fitted with brakes to prevent rolling away (without load)
- Spring-based roll guard: jack automatically lowers itself to floor once a load capacity of about 1000 kg is reached, securing itself in the process
- Integrated inspection window for checking oil quality and quantity of the pit jack
- Optimised removal of the dismantled units thanks to low construction height of the jack due to ideal arrangement of the lifting unit in the carriage
- With its non-slip coating the carriage can be used as a secure working platform for ergonomic reasons
- Corrosion-resistant piston rods thanks to self-lubrication
- High-quality powder-coating protects against corrosive liquids and elevates quality look and feel on a lasting basis
Scope of delivery:
- Pit jack with hydro-pneumatic automatic control system
- Carriage with four guide rollers
- Standard support lugs 120 x 120 mm
- Operatinginstructions
- EC conformity certificate
- Colour: Jack base frame RAL 7040
- Attachments and carriage RAL 7016
Downloads
Sales documents
Brochures | ||
---|---|---|
Brochure PIT JACK
|
||
Brochure (Printable version) PIT JACK
|
Technical Datasheet | ||
---|---|---|
Technical Datasheet MPJ 16.5/1200 2S FA STOCK
|
||
Technical Datasheet (Printable version) MPJ 16.5/1200 2S FA STOCK
|
Technical documentation
Product drawings | ||
---|---|---|
Brochure PIT JACK Dimension Sheet
|
Technical Data
Technical data:
Load capacity (CE) | 16,500 kg |
Fast stroke power | 400 kg |
Stroke distance | 1200 mm |
Lifting levels | 2 |
Min. load pick-up height | 867 mm |
Max. lifting height | 2067 mm |
Carriage (L x W) | 1010 x 760 mm |
Rollers | 80 mm (polyamide) |
Support diameter inside/outside | 45/80 mm |
Piston roddiameter | 80/115 mm |
Oil quantity/quality | 15.3 l / HLP-D 10 |
Drive | 350 l/min. 7-10 bar |
Operating pressure | 235 bar |
Weight | 300 kg |
