product details / scope of delivery
- Very smooth running due to electro-mechanical drive system
- High efficiency thanks to smooth-running, low-maintenance ball screw
- 5-year warrantee for entire spindle drive
- Excellent lifting column mechanical rigidity guarantees safety and function under any conditions
- Lifting columns can be moved conveniently and easily thanks to hydraulic dolly at each column
- Precision-height positioning without overrun thanks to high-quality worm gear motor
- Lifting carriages with adjustable universal support
- Generous adjustment range, also suitable for large wheel diameters
- Overhead drive unit creates even more space in the work area
- Workshop-robust and splash-proof control unit
- Wear-free and easy-to-use membrane keypad
- Flexible column positioning thanks to battery power supply (4 x 12 V), guaranteeing suitability across all vehicle categories
- User convenience with panel operator controls on each individual column
- High level of flexibility in use due to different operating modes
- Group and individual column operating modes enable quick and easy replacement of wheel and axle suspensions
- Microprocessor control and wireless monitoring of movement synchronisation and all safety functions
- Utmost safety thanks to mechanically independent locking device
- Simple emergency lowering for power failure included as standard
- System can easily be expanded with up to eight columns

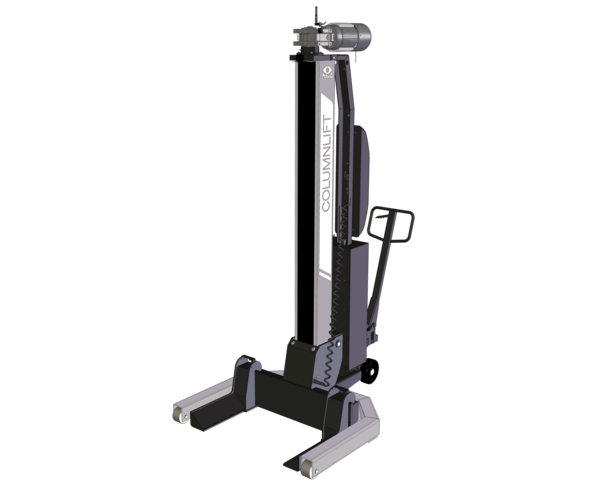

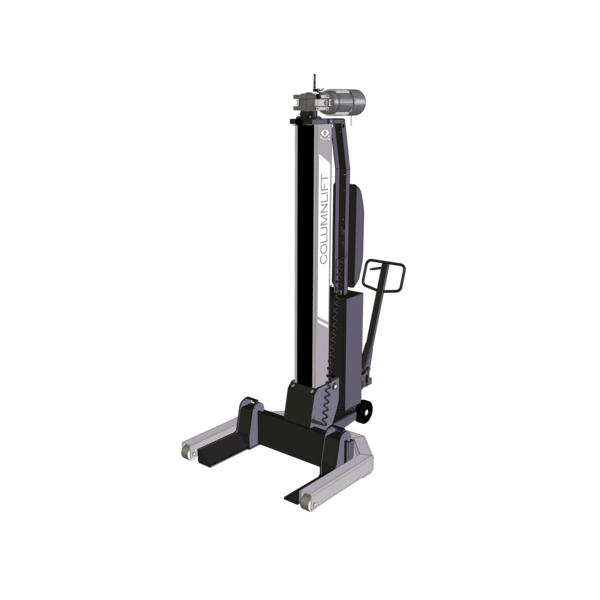

- Streamline COLUMNLIFT design aids manoeuvrability specifically in workstations with restricted space
- High-quality powder coating:
- Window Grey, RAL 7040 (Columns)
- Anthracite, Grey RAL 7016 (Lifting carriages)
Scope of delivery:
- 4 individual mobile columns with battery power supply
- 4 hydraulic dollies
Technical Data
Technical data:
Load capacity CE per column | 7500 kg |
Drive power per column | 1.5 kW |
Weight per column | 545 kg |
Lifting distance | 1750 mm |
Raising/lowering time | 113 s |
Tyre diameter min. - max. | 550 - 1500 mm |
Fork length | 380 mm |
Voltage for charger | 230 V |
Lifting cycles partial load (3500 kg) | 35 |
Lifting cycles full load | 25 |
Protection rating | IP 54 |
