product details / scope of delivery
Description:

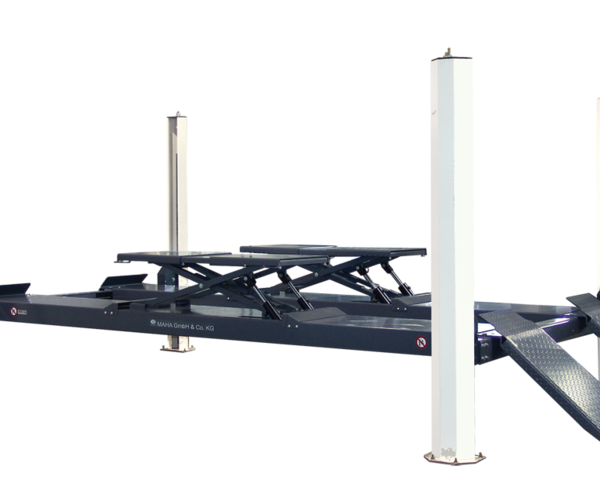

- Four post lift with electro-hydraulic drive unit for surface mounting
- Precision wheel alignment design
- Special runway profile and reinforced crossbeams for high flexural resistance and long-term stability
- Torsion-free, high-precision fine adjustment of the platforms to the crossbar, resulting in perfect conditioning for wheel alignment
- Extra reinforcement plates welded onto runways for optimum stability
- Large runway width for all vehicle track widths
- Runways equipped with pre-integrated guide rail for axle lift
- Lowering device for chassis alignment included as standard, with precision-adjustable lock ladder and electromagnetically operated latches
- Low travel height for easy drive on
- Emergency DOWN feature in case of power failure
- Paint: high-quality powder coating:
- Window Grey, RAL 7040 (Columns)
- Anthracite Grey, RAL 7016 (Runways, Runway structures, Drive-on ramps, Traverses)
Scope of delivery:
- Four-post lift, Type CARLIFT II 4.0 W
- Operating box with control and hydraulic power unit
- Lockable main switch
- Settling device for wheel alignment
- 2 pieces drive-on ramps, 2 pieces roll bar
- Operating manual and inspection log book
- EC Declaration of Conformity CE
- Transport packaging
Downloads
Sales documents
Brochures | ||
---|---|---|
Brochure MAHA CARLIFT II
|
||
Brochure (Printable version) MAHA CARLIFT II print
|
Technical Datasheet | ||
---|---|---|
Technical Datasheet CARLIFT II 4.0 W
|
||
Technical Datasheet (Printable version) CARLIFT II 4.0 W
|
Technical documentation
Operating Instructions | ||
---|---|---|
Operating Instructions CARLIFT II 4.0
|
Technical Data
Technical data:
Load capacity CE | 4000 kg |
Max. lifting height | 1995 mm |
Lifting /lowering time (depends on load) | approx. 30/30 s |
Total dimensions (L x W) | 5790 x 3480 mm |
Drive-on height | 175 mm |
Drive-on height with wheel-free jack | 175 mm |
Drive-on height with setup for wheel alignment | 225 mm |
Drive-on height with setup for wheel alignment | |
and wheel-free jack | 225 mm |
Platform dimensions (L <(>&<)> W) | 4400 x 630 mm |
length, optional | 4800 mm |
Column width clearance | 2900 mm |
Driving platform clearance | 950 mm |
Drive power | 2.2 kW |
Power supply | 3/N/PE 400 V 50 Hz |
Fuse gG | 16 A |
Weight | 1500 kg |
Hydraulic oil volume (not included) | 10 l |
Packaging dimensions (L x W x H) | 4400 x 800 x 1200 mm |
