product details / scope of delivery
Description:

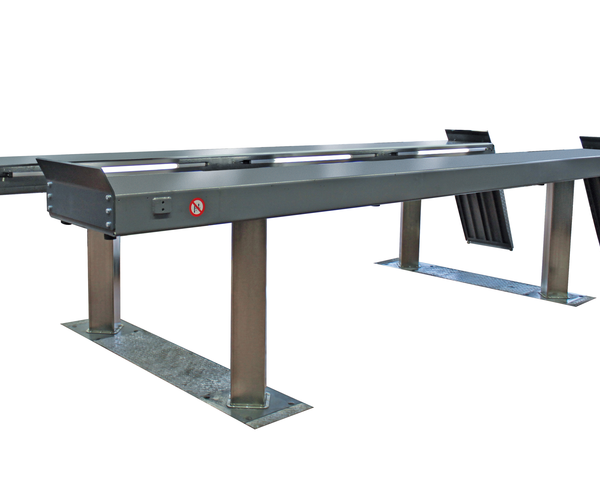

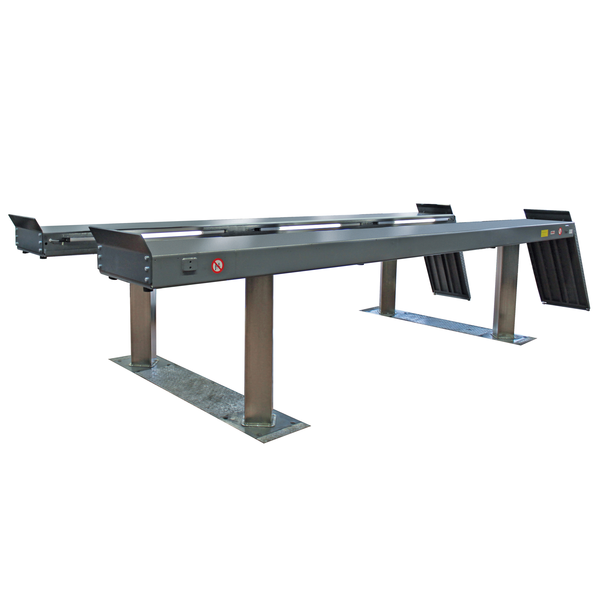

Four-post in-floor lift with driving platforms for
transporters
Description of driving platform:
- Driving platform length 5600mm ideal for cars and transporters
- Ample freedom of movement below the lifting platform thanks to the compact post-lifting unit and resulting optimum lighting below the raised vehicle
- Optional conversion to chassis measurementlift with precisely aligned driving platforms, sliding plates for tension-free wheel support, driving platform levelling and Displacement device with latch rail
- Optionally, can be upgraded to vehicle check-in lift with axle play tester to inspect chassis assemblies
- Optionally prepared for wheel-free jack and level driving platforms with levelling plate sets
- A high-quality powder-coated platform covering assists in corrosion protection and adds a significant upgrade in terms of appearance
- Optional driving platform coating with granulate coating
- Additional corrosion-resistant treatment in the seam region and body cavity-sealing increases the service life
- Pre-integrated compressedair connection and optional 230V/1PH energy supply in runways
- All cables are protected inside the SQUARE post
- Optional, no-dazzle rotatable LED lighting
- Various assembly variants for optimum use:
- Driving platform resting on floor with low drive-on height and platform movement area with no tripping hazard edges
- Driving platforms flush with floor to facilitate driving onto the lift, no protruding assemblies in the lift area
- Driving platforms flushwith floor to facilitate driving onto the lift, no protruding assemblies in the lift area with complete floor levelling of the platform movement area with no tripping hazard edges
- Runways and ground levelling pre-equipped for the use of an optional axle lift
- Pinch point and shear point protection thanks to CE stop
SQUARE lift unit:
- Outstanding rigidity and optimum safety thanks to torsion-resistant square post
- Very quiet pump and very quiet electric motor in corrosion-proof oil-submerged design, optionally with bio oil
- Electronic lift control with no-contact, wear-free limit switches and visual error display
- Very smooth running due to special long-life nickel coating onposts that promotes sliding, with robust,low-maintenance post design
- Protected internal hydraulic safety cylinder guarantee lengthy service life
- Mobile synchronisation and safety yoke for careful distribution of force in the post guide as standard
- High lifting/lowering speeds are guaranteed (max. 38/38 s)
- Lift system with synchronisation for electronic synchronism of the front and rear piston couple guarantees optimum precision of the front and rear piston couple
- Battery-operated emergency lowering
- Optimisation of workplace ergonomics mentioned thanks to optional, standard-independent control via traffic-light energy module or flush-mounted switching system
Scope of delivery:
-Driving platform 5600 mm powder-coated anthracite (RAL 7016)
- Lift unit with hydraulic assembly
- Ramps and drive-on plates
- Rapid-action compressed-air coupling mounted on driving platform
- Wiring and mounting material
- Installation box/installation frame not included in delivery
- Emergency DOWN cable for connection to switch box
- Control unit with 4 x 10 m control cables (flexible oil cables)
- Lockable master switch
- Operating manual and test log
- EC Declaration of Conformity CE
Downloads
Sales documents
Brochures | ||
---|---|---|
Brochure In-ground lifting technology
|
||
Brochure (Printable version) In-ground lifting technology
|
Technical Datasheet | ||
---|---|---|
Technical Datasheet VS SQUARE II 6.5 VAN
|
||
Technical Datasheet (Printable version) VS SQUARE II 6.5 VAN
|
Technical documentation
Operating Instructions | ||
---|---|---|
Operating Instructions VS SQUARE II
|
Technical Data
Technical data:
Load capacity CE | 6500 kg |
Dimensions of driving | |
platform (L x W x H) | 5600 x 650 x 175 mm |
Inner drive-through width | 848 mm |
Total dimensions (L x W x H) | 6958 x 2245 x 175 mm |
Max. lifting height | 2050 mm |
Post dimensions, square | 180 mm |
Post spacing | 1580 mm |
Post axle spacing in driving direction | 3500 mm |
Installation depth | 2382 mm |
Lifting/lowering time depending on load | approx. 38/38 s |
Hydraulic oil volume (not included) | approx. 56 l |
Operating pressure | 180 bar |
Control unit (H x W x D) | 600 x 400 x 150 mm |
Drive power | 2 × 3.0 kW |
Fuse gG | 25 A |
Power supply | 3/N/PE 400 V 50 Hz |
