product details / scope of delivery
Description:
- Short warm-up time ensures rapid readiness for measurement
- recise analysis of gas components HC, CO, CO2, O2 with lambda value calculation
- Time-saving and trouble-free testing and diagnosis of smoke opacity/particle concentration w. partial flow method during free acceleration or under load of engine
- Rapid emission test procedure
- Intuitive operation, clear emission test structure
- Maintenance-friendly thanks to easy accessibility
- Future-proof with cutting-edge technology
Scope of delivery:

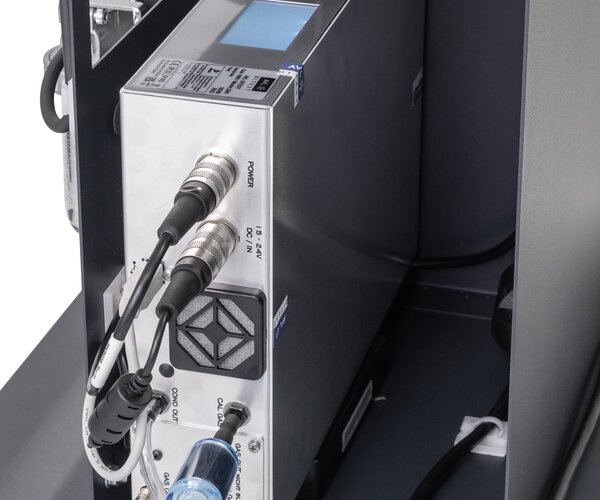

- Gas analyser basic device in high-quality metal casing
- Integrated display unit
- Exhaust gas sampling probe 600 mm, 6000 mm Sondenschlauch
- Opacimeter basic device in high-qualityplastic casing
- Integrated display unit
- Exhaust gas sampling probe 600 mm, 2000 mm probe hose
- Bluetooth interface, USB connection optional
- AUX 2000, incl. magnetic sensor and oil temp. sensor 1000 mm
- Condensate bottle 500 ml

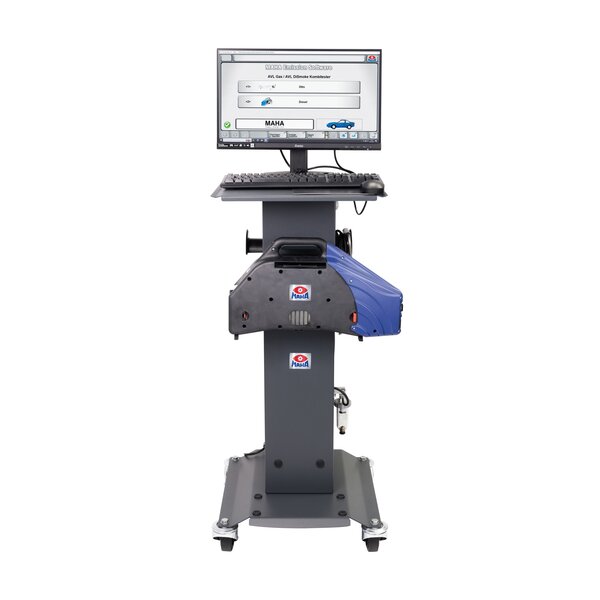

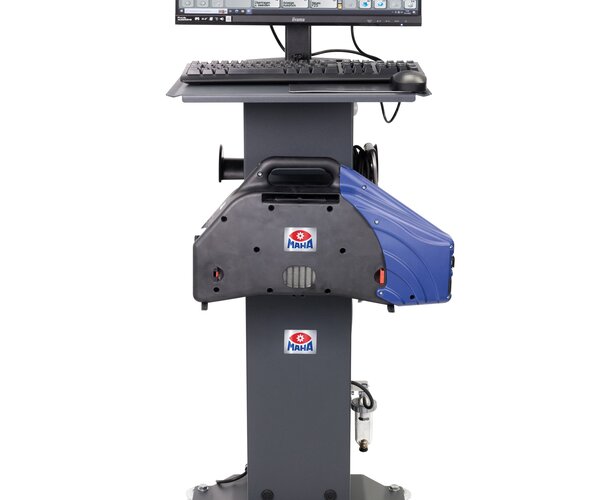

- Trolley
- PC, monitor, keyboard, mouse, printer
Technical Data
Technical Data:
Gas Analyser
| Measurement principle: | |
| infrared spectrometry | HC, CO, CO2 |
| Measurable gases | HC, CO, CO2, O2 |
| Electrochemical detection | O2 |
| Operating conditions: | |
| Temperature | 5°C to 40°C |
| Power supply | 110-230V 50/60 Hz |
| Accuracy class | 0 (OIML) |
| Dimensions (L x W x H) | 344 x 252 x 85 mm |
| Weight | approx. 2.2 kg |
| Measurement range / measured value resolution (max.): | |
| CO | 0-15 % Vol. / 0.01 |
| CO2 | 0-20 % Vol. / 0.01 |
| HC | 0-9999 ppm / 0.1 |
| O2 | 0-25 % Vol. / 0.01 |
| Lambda (calculated) | 0.5-9.99 / 0.01 |
Opacimeter
| Measurement principle | absorbance measurement |
| Operating conditions: | |
| Temperature | 5°C to 40°C |
| Power supply | 110-230V 50/60 Hz |
| Dimensions (L x W x H) | 395 x 136 x 285 mm |
| Weight . | approx. 3.5 kg |
| Maximum exhaust gas temperature | 200°C |
| Measuring range, opacity | 0-99.9% |
| Resolution, opacity | 0.1% |
| Measuring range, absorption coefficient | 0-9.99 m-1 |
| Resolution, absorption coefficient | 0.01 m-1 |
