product details / scope of delivery
Description:
- Short warm-up time ensures rapid readiness for measurement
- Precise analysis of gas components HC, CO, CO2, O2 with lambda value calculation
- Type approval according to MID
- Exhaust gas measurement possible with CNG,LPG and petrol
engines
- Low maintenance
- USB and Bluetooth interfaces
Scope of delivery:

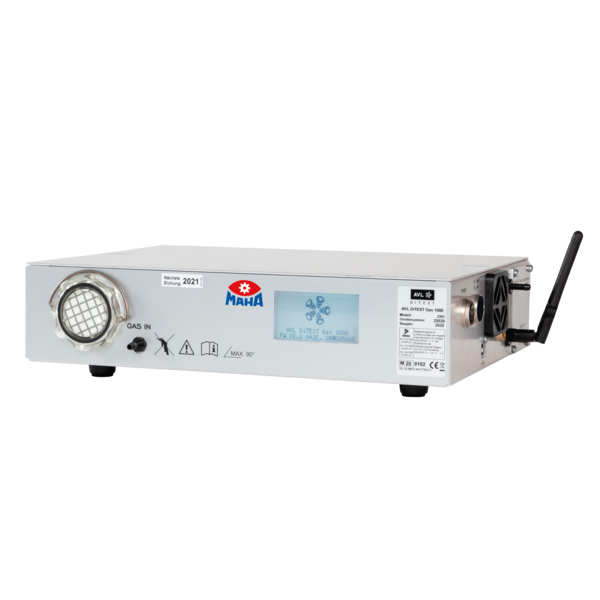

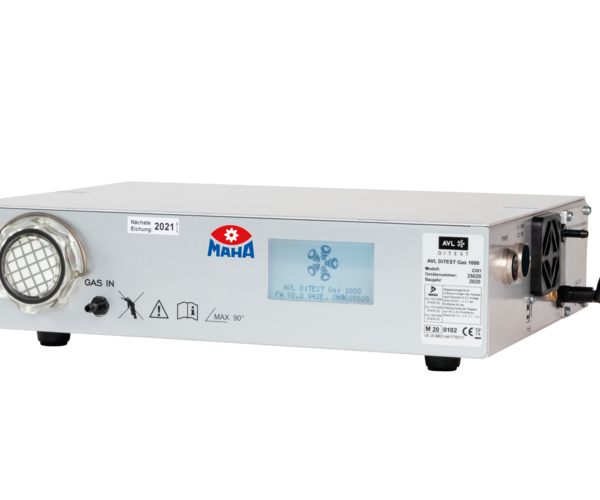

- GAS 1000 gas analyser basic device in high-quality metal casing
- Integrated display unit
- USB interface with USB cable
- Bluetooth interface, 6000 mm probe hose
- AUX 2000, incl. magnetic sensor and oil temp. sensor 1000 mm
- Condensate bottle 500 ml
Technical Data
Technical Data:
| Measurement principle: | |
| infrared spectrometry | HC, CO, CO2 |
| Measurable gases | HC, CO, CO2, O2 |
| Electrochemical detection | O2 |
| Operating conditions: | |
| Temperature | 5°C to 40°C |
| Power supply | 110-230V 50/60 Hz |
| Accuracy class | 0 (OIML) |
| Dimensions (L x W x H) | 344 x 252 x 85 mm |
| Weight | approx. 2.2 kg |
| Measurement range / measuredvalue resolution (max.): | |
| CO | 0-15 % Vol. / 0.01 |
| CO2 | 0-20 % Vol. / 0.01 |
| HC | 0-9999 ppm / 0.1 |
| O2 | 0-25 % Vol. / 0.01 |
| Lambda (calculated) | 0.5-9.99 / 0.01 |
