M4GT CT VP 135122

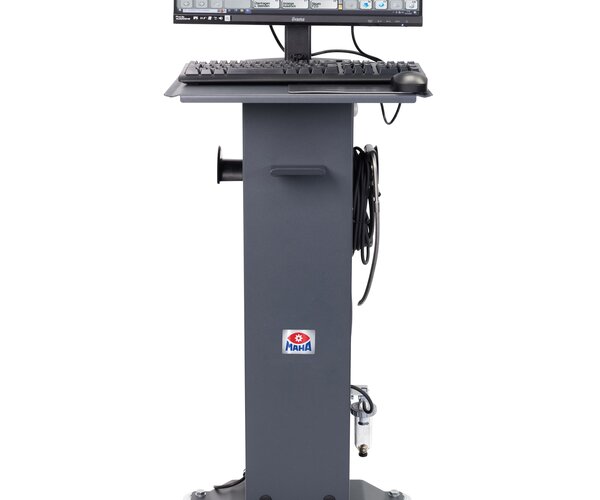

The MAHA 4-Gas Tester on CONNECT trolley serves for the measurement of petrol, CNG and LPG powered vehicles as well as the precise analysis of the gas components HC, CO, CO2, O2 with lambda value calculation. The M4GT impresses with its low weight, compact design and short warm-up time for easy handling, precise measurement results and rapid measurement readiness.

product details / scope of delivery

Description:

  • Short warm-up time ensures rapid readiness for measurement
  • Precise analysis of gas components HC, CO, CO2, O2 with lambda value calculation
  • Type approval according to MID
  • Exhaust gas measurement possible with CNG,LPG and petrol engines
  • Low maintenance
  • USB and Bluetooth interfaces


Scope of delivery:

  • GAS 1000 gas analyser basic device in high-quality metal casing
  • Integrated display unit
  • USB interface with USB cable
  • Bluetooth Schnittstelle
  • Bluetooth interface, 6000 mm probe hose
  • AUX 2000, incl. magnetic sensor and oil temp. sensor 1000 mm
  • Condensate bottle 500 ml
  • Trolley
  • PC, monitor, keyboard, mouse, printer


Downloads

Sales documents

Brochures
Brochure Emissions Diagnosis Systems
DE EN
Brochure (Printable version) Emissions Diagnosis Systems
DE EN
Technical Datasheet
Technical Datasheet M4GT CT
DE EN
Technical Datasheet (Printable version) M4GT CT
DE EN

Technical Data

Technical Data:

Measurement principle:
infrared spectrometryHC, CO, CO2
Measurable gasesHC, CO, CO2, O2
Electrochemical detectionO2
Operating conditions:
Temperature5°C to 40°C
Power supply110-230V 50/60 Hz
Accuracy class0 (OIML)
Dimensions (L x W x H)344 x 252 x 85 mm
Weightapprox. 2.2 kg
Measurement range / measured value resolution (max.):
CO0-15 % Vol. / 0.01
CO20-20 % Vol. / 0.01
HC0-9999 ppm / 0.1
O20-25 % Vol. / 0.01
Lambda (calculated)0.5-9.99 / 0.01
