MBT 1000 EUROSYSTEM VP 610012

product details / scope of delivery

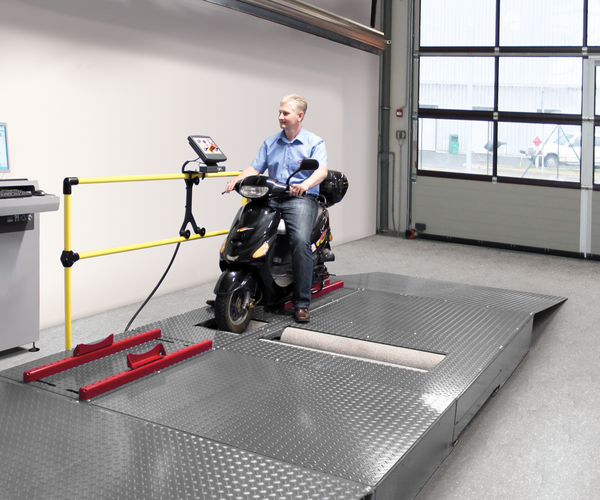

Description of the MBT 1000 EUROSYSTEM Roller brake tester
for motorcycles with a wheel load of up to 1 t

• Short roller axle distance means it is particularly suitable for testing motorcycles.
• Supplied as standard with tyre-preserving MAHA plastic coating on test rollers, specifically coordinated to the tyres
• MAHA modular design with optional motorcycle clamping and holding device for the rear and front wheels with removable clamping jaws for simpletesting that is kind to the rims.
• MAHA modular design with optional extension roller set allows for testing of two and three-track vehicles (trike, quad, etc.)
• Supplied as standard with tyre-preserving MAHA plastic coating on testrollers, specifically coordinated to the soft two and three-wheel-specific tyres
• Operating panel with the following comprehensive functions:
  • Start, stop, emergency stop
  • Operation of the clamping and holding device,
  • Operation of the lifting bar

• Comprehensive package of functions for professional testing, such as:
  • Automatic start-up monitoring supplied as standard to avoid tyre damage
  • Automatic slip cut-off with pointer stop
  • Automatic cut-off after exiting the tester
  • Manual start-up control for safe handling

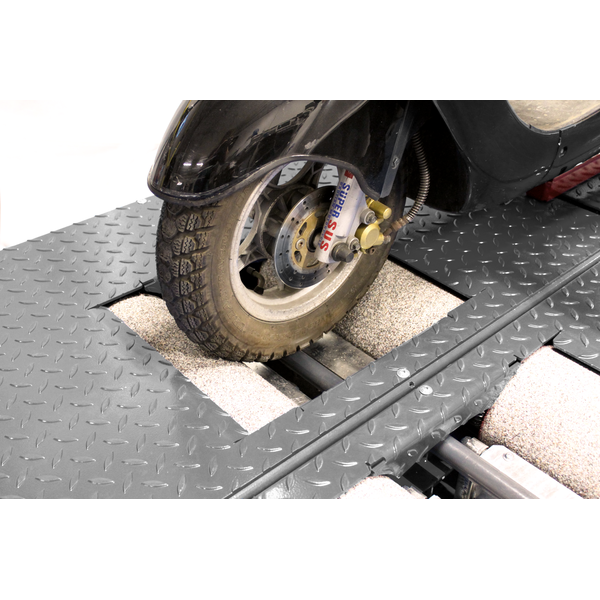

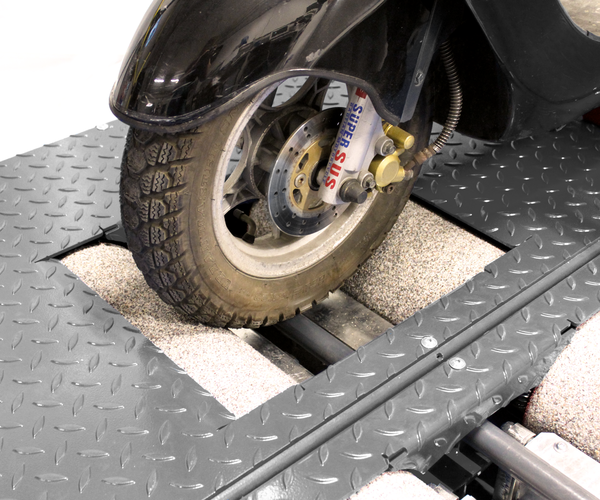

  • Lifting bar with roller brake makes it easier to drive off with the driven wheel

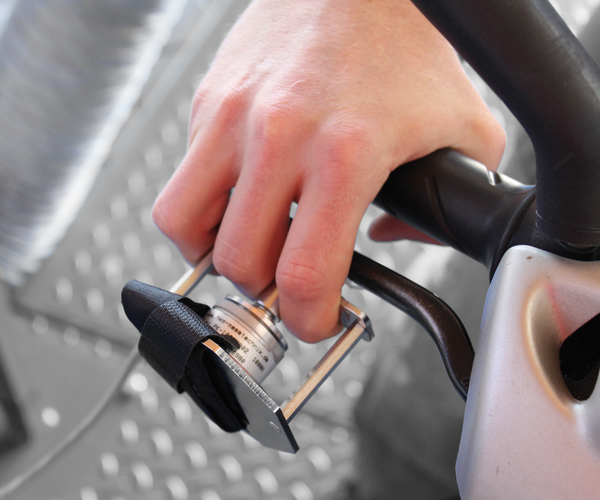

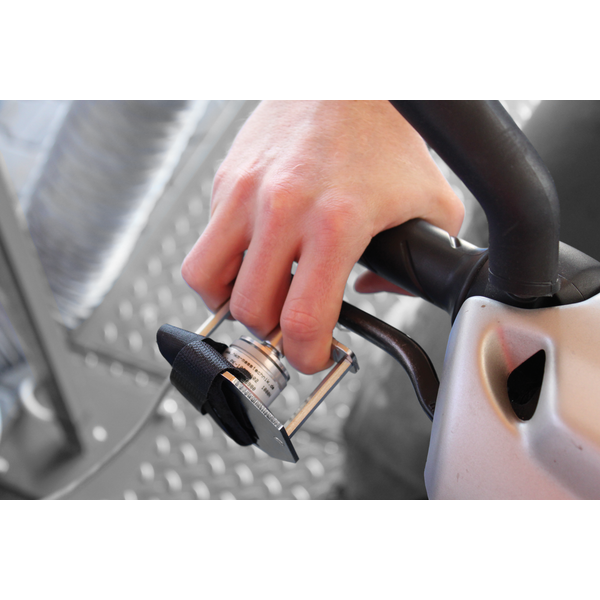

• Can be extended with foot and hand force sensor as an option for differentiated analysis of the motorcycle braking system
• Round instrument display for the braking force
• Continuous and graphic display and recording of all the measured values using time.

• Robust and long-lasting design due to: -Electronic, temperature-compensated strain gauge system -Weighted test rollers with groove ball bearings ensure
  • for highly precise measurement results under all environmental conditions
  • Roller surface welded
  • Optional, free plastic coating on the test rollers
  • 32-bit microprocessor electronics for process control and monitoring of all the safety functions
  • Lockable main switch
  • RS 232 interface connection
  • Splash-proof motors work reliably, even under high-stress environmental influences maximum precision and complete driving comfort and guarantee a long service life for the entire tester
  • Varnished with high-quality powder coating: Anthracite Grey, RAL7016

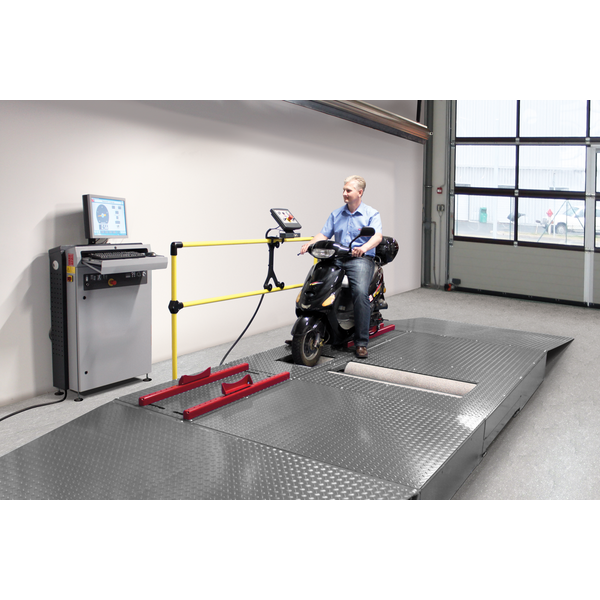

Description of the MCD 2000 communication desk:

• Robust and multifunctional metal casing
• Integrated switch cabinet for housing electronic components
• Lockable drawer for keypad and PC mouse, plus storage compartment for smallitems of equipment
• VESA standard bracket for holding the all-in-one PC or PC monitor
• Can be extended with optional PC storage compartment or side shelves
• Varnished with high-quality powder coating: window grey, RAL 7040 (switchcabinet) anthracite grey, RAL 7016 (side faces)

Scope of delivery:

• MCD 2000 communication desk with integrated switch cabinet
• MBT 1000 RS 1 roller set with preparation for weighing equipment
