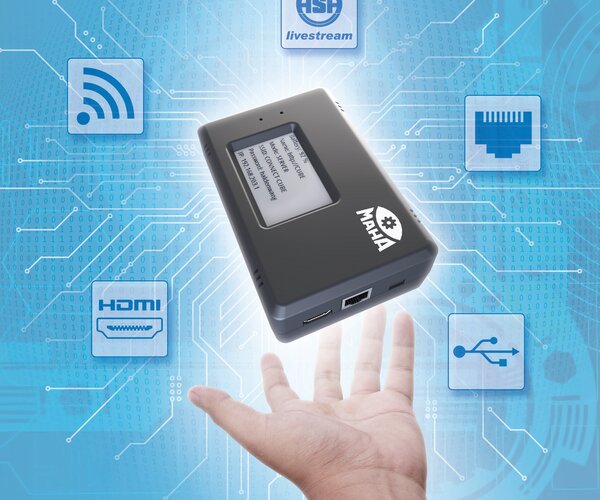

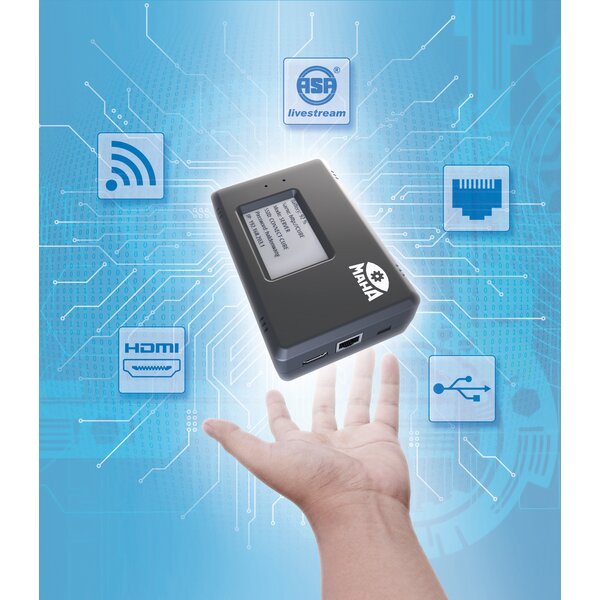

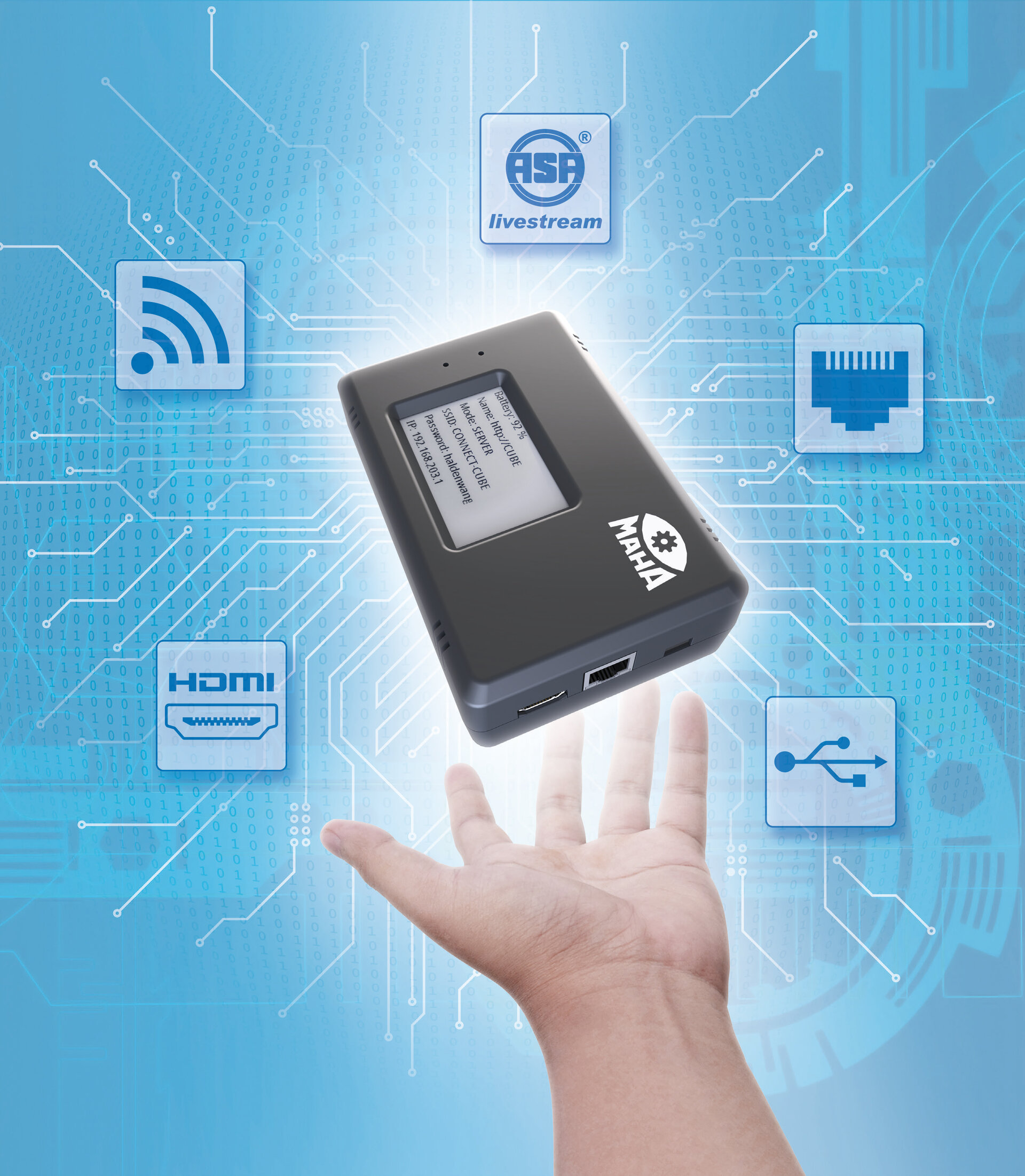

CONNECT CUBE V3 VP 185076

The mobile data tool is ideal for fast, digital brake system diagnostics as well as for the routine testing and calibration of all ASA Livestream-compatible brake testers.
The plug & play solution can also be used for modern routine testing and calibration (no adjustment) of brake testers.
Intended use: for safety testing and main inspection purposes
Features:
+ Plug & play solution
+ independent power supply
+ Standardised user interface across different brake testers

product details / scope of delivery

Description:

  • Mobile ASA-Livestream data node for the main inspection
  • Brake tester connection with SP adapter and SP-Plus
  • Check, output and documentation of ASA-Livestream interface
  • Device-independent and usable with all standardbrowsers
  • Mobile plug&play solution for OEMs, vehicle inspection organisations, SP test stations, car dealerships and workshops
  • Battery-powered, runtime approx. 10 h. Charging and permanent power supply via power supply unit

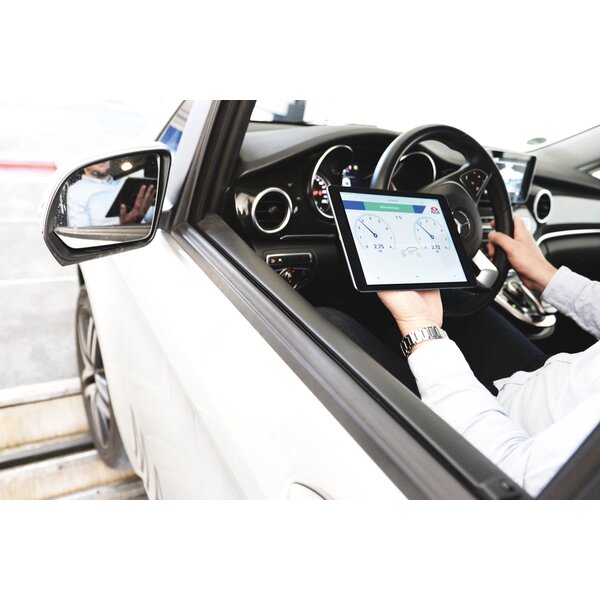

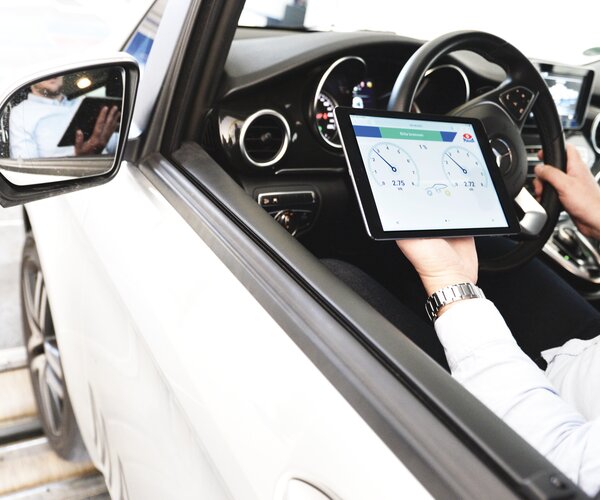

  • Digital visualisation of brake test values on Smart Devices
  • NETMAN 4.0 integrated


Scope of delivery:

  • CONNECT Cube
  • LAN cable (0.5 m)
  • Power supply unit
  • Memory card (16 GB)


Downloads

Sales documents

Brochures
Brochure MAHA CONNECT CUBE
DE EN
Brochure (Printable version) MAHA CONNECT CUBE print
DE EN
Technical Datasheet
Technical Datasheet CONNECT CUBE V3
DE EN
Technical Datasheet (Printable version) CONNECT CUBE V3
DE EN

Technical documentation

Operating Instructions
Operating Instructions CONNECT CUBE V3
DE

Technical Data

Technical data:

Temperature ranges:
Operation-10°C...+45°C
Storage-20°C...+60°C
Power supply:
Integrated batteryLiPo 10,000 mAh rechargeable
(battery charging via coaxial connector 5.5/2.1)
Power supply unit230 V/0.5 A AC-Input
5 V/0.3 A DC-Output
Dimensions (W x H x D)approx. 90 x 135 x 46 mm
Weightapprox. 35 kg
